5E Series Sample Divider

5E Series Sample Divider is the updated motive division apparatus after simulating manual division. It is suitable for sample division in coal mine, iron ore, metallurgical coke and chemical industry.

Please leave your E-mail address before download the product PDF. Your cooperation is appreciated.

Warm prompt: Please make sure you entered a correct E-mail address. We will send you relevant information and product quotation regularly.

  • Features
  • Specification

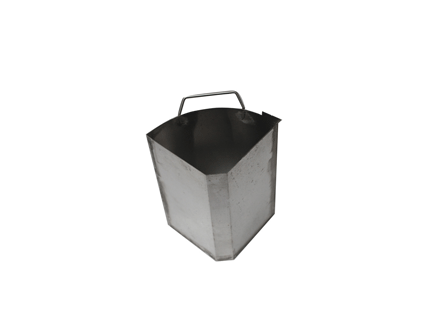

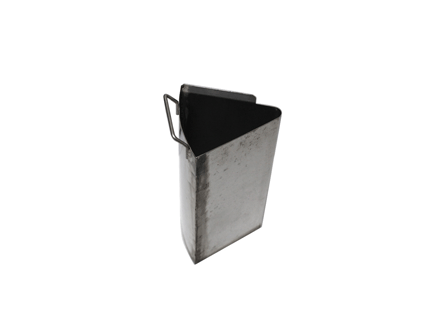

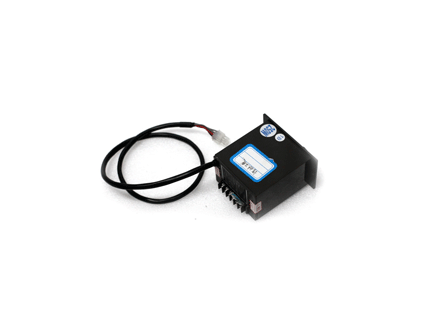

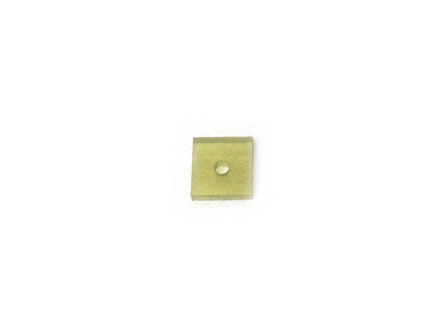

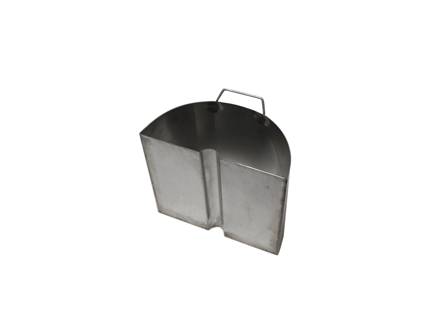

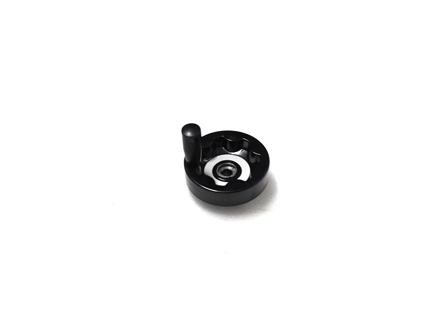

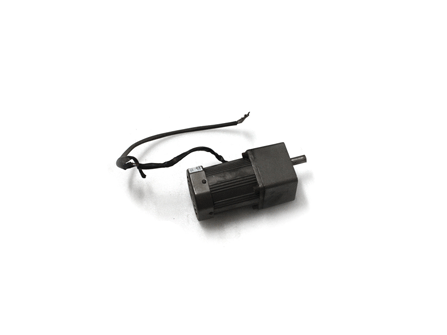

  • Spare parts
  • Case

Models Available:5E-MR1/8 Sample Divider
5E-MRA1/8 Rotary Sample Divider

Features:

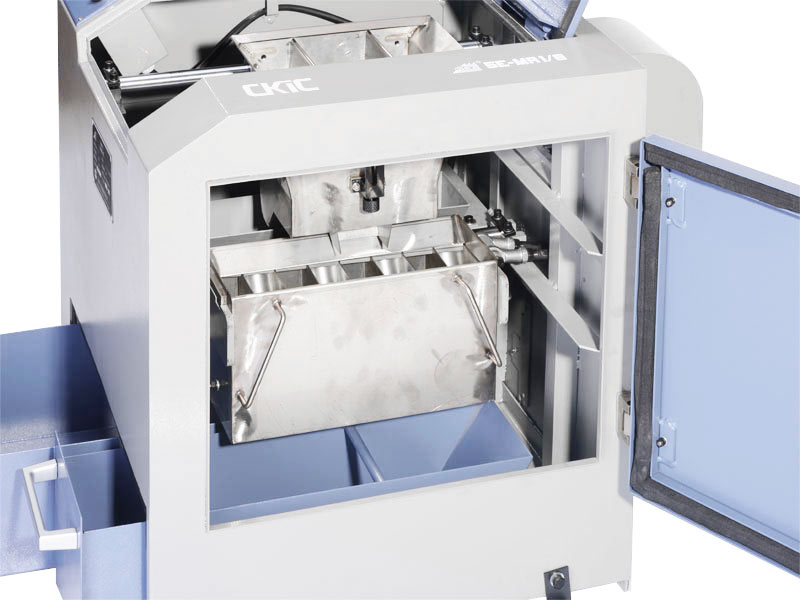

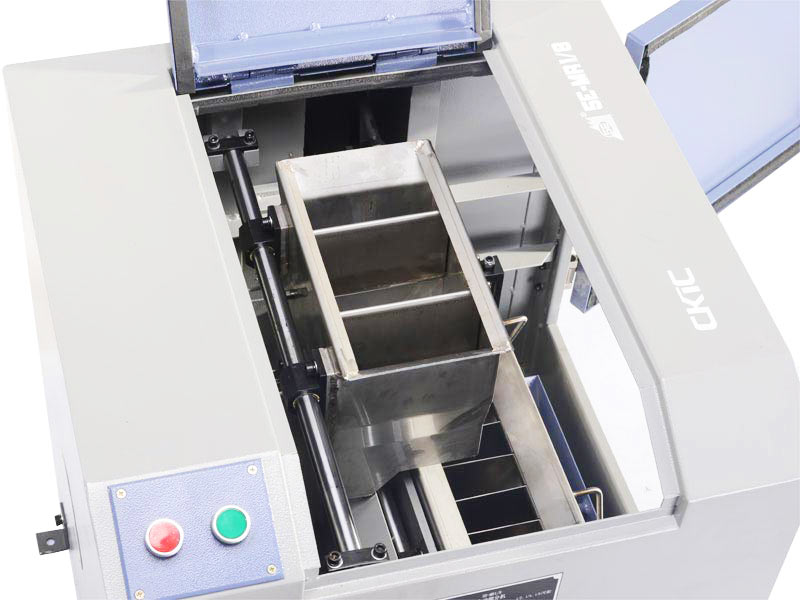

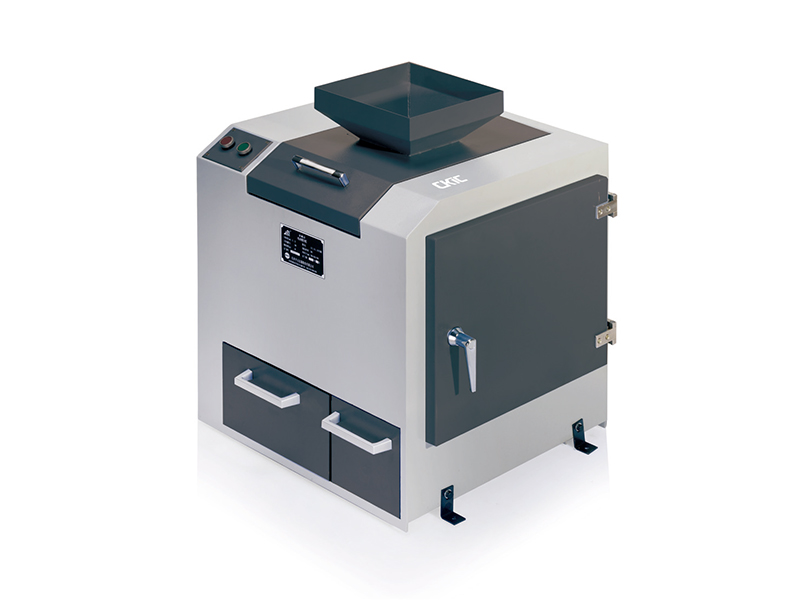

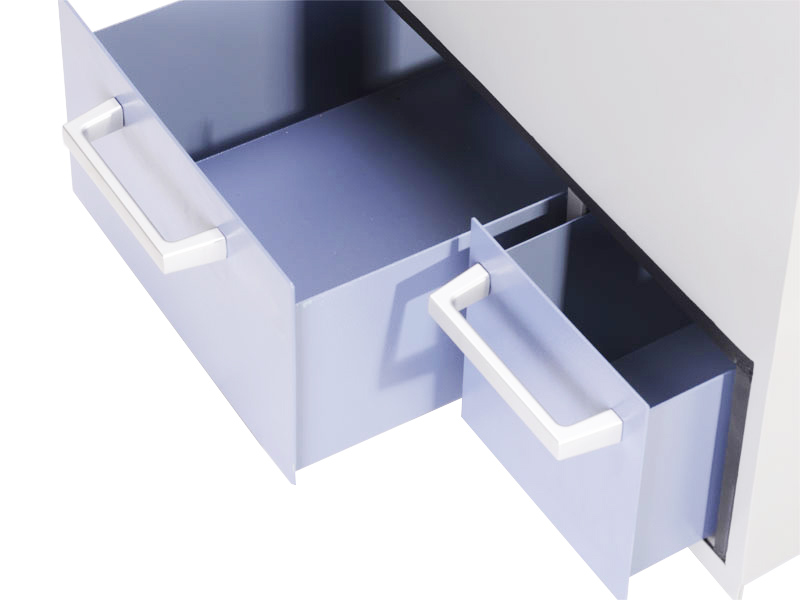

5E-MR1/8 Sample Divider
1. Dust free due to complete sealed design.
2. Easy to clean and no sample mixing.
3. Patent technology, easy to adjust the division ratio.

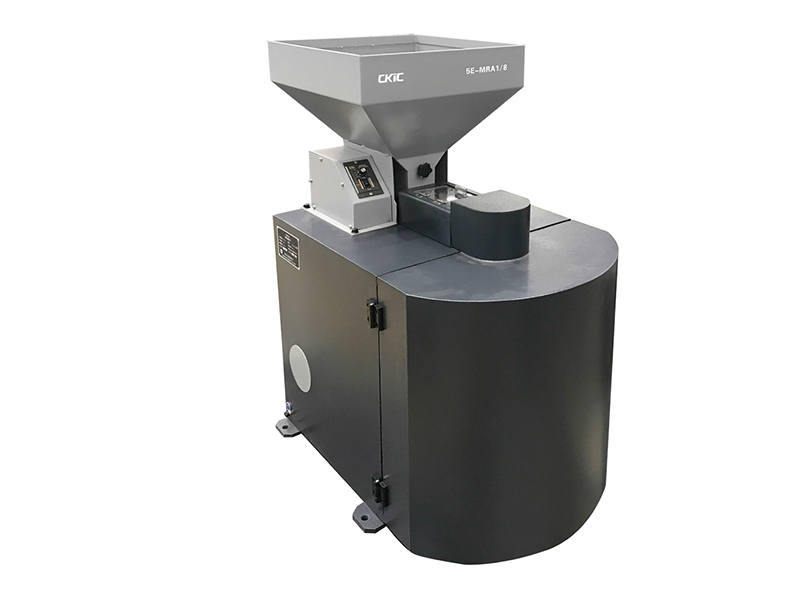

5E-MRA1/8 Rotary Sample Divider

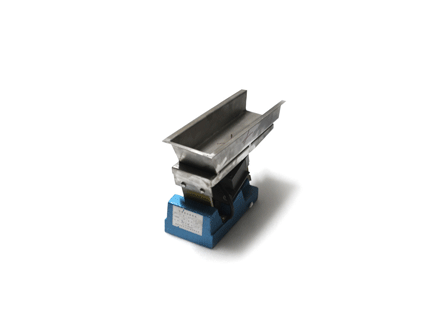

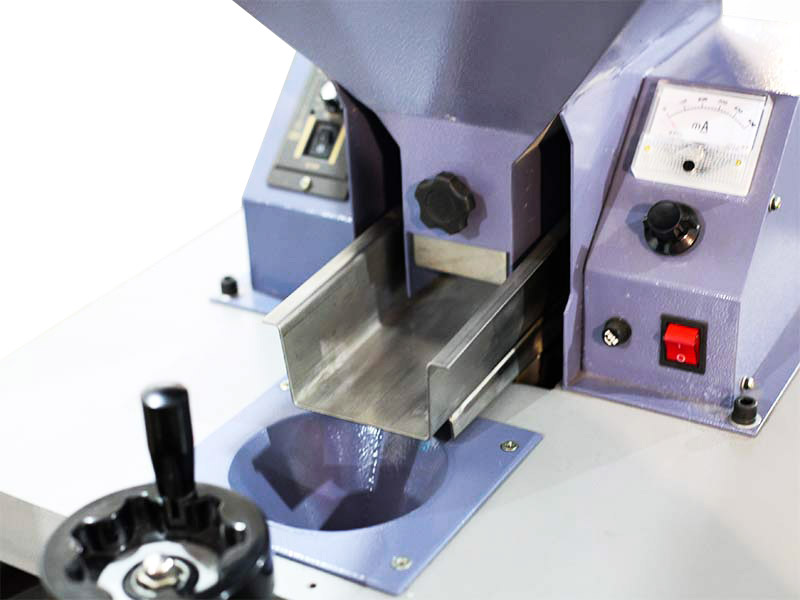

1. Vibrating feeder to ensure the feed material even.

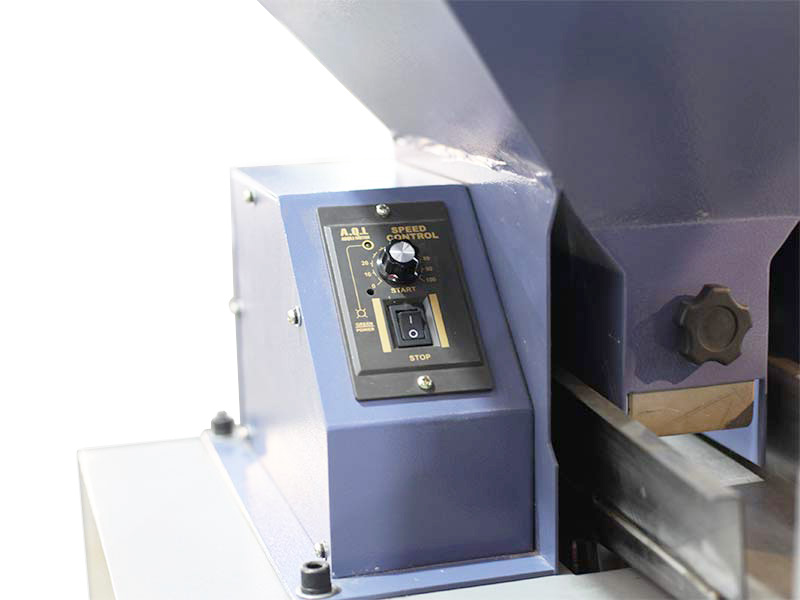

2. Rotary speed & feed location is adjustable.

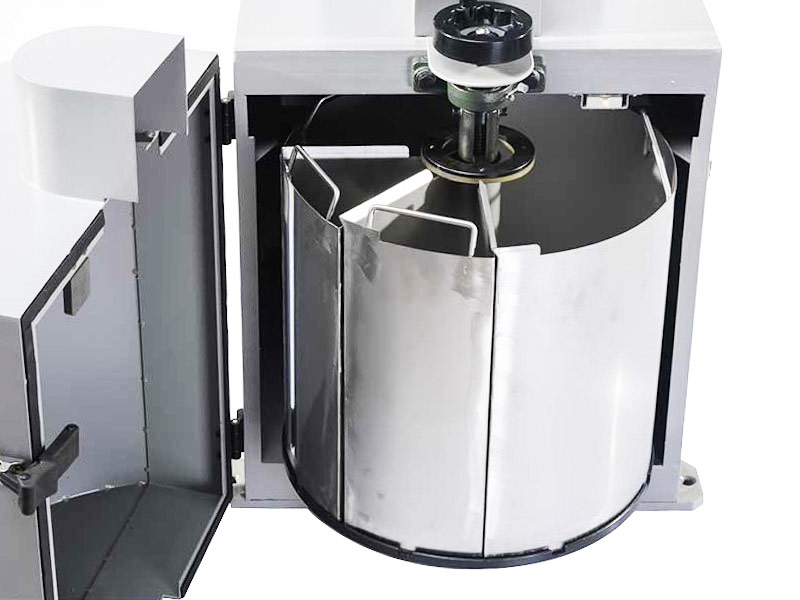

3. Compact structure and easy to install and uninstall of the receiving buckets.

Model 5E-MR1/8 Sample Divider 5E-MRA1/8 Rotary Sample Divider
Feed Size ≤13mm 3-13mm
Dividing Ratio 1/2,1/4,1/8 (Adjustable) A(Default Option): 4 buckets (1x1/2,1x1/4,2x1/8)
B: 6 buckets (2x1/4,4x1/8)
C: 8 buckets (8x1/8)
Throughtput 800-1200kg/h Max. 350kg/h
Moisture Adaptability ≤12% ≤12%
Power Supply 3 phases, AC380V±10%, 50/60Hz, 1.5w Single phases, AC220V±10%, 50/60Hz , 250w
Noise ≤40dB ≤80dB
Total Capacity of Buckets / 40kg
Net Weight 95kg 130kg
Dimensions(L×W×H) 656mmx767mmx746mm 860mmx500mmx1010mm
