  • CKIC 5E-CYH Railway Wagon Sampler

5E-CYH Railway Wagon Sampler

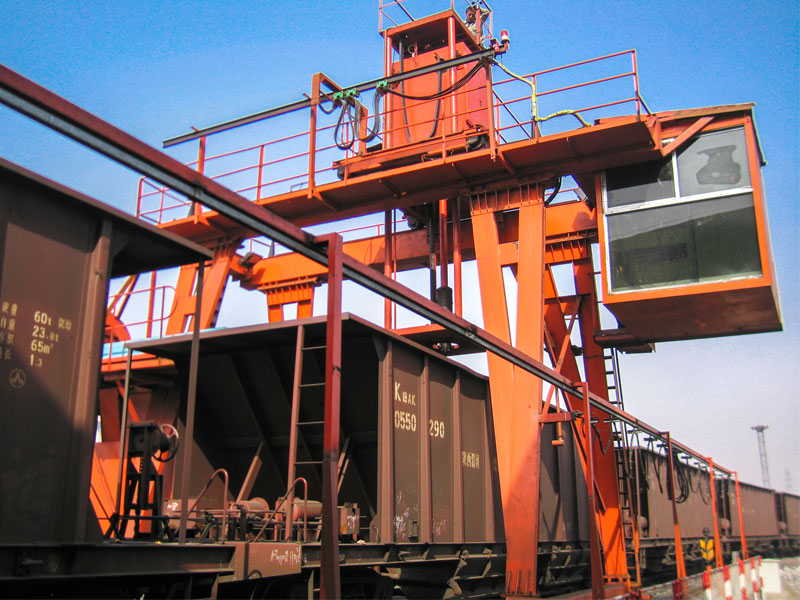

5E-CYH Railway Wagon Sampler is used for random sampling of bulk materials in the carriage of train or truck. It consists of sampling system, electrical control system, automatic ultrasonic positioning system and coal surface detecting device.

Please leave your E-mail address before download the product PDF. Your cooperation is appreciated.

Warm prompt: Please make sure you entered a correct E-mail address. We will send you relevant information and product quotation regularly.

  • Features
  • Specification
  • Spare parts
  • Case

1. Two augers can be equipped to meet the demands of sampling different materials.
2. Full section sampling fully comply with the mechanical sampling standard.
3. Single point sampling and multipoint sampling are available to increase the efficiency.
4. Automatic ultrasonic positioning technology an sampling ensures reliable results without human interference.
5. Reduction and division of the material by online sample preparation system is available if it is needed.
6. Capable to connect with information management system.
7. Control methods: Touch Screen Controller+PLC/Automatic/Semi-Auto/Manual.

Intergration Solution for Sampling and Sample Preparation:
Railway Wagoin Sampler + Conveyor Belt (60m) +  Automatic Sample Preparation System
Model 5E-CYH-M Railway Wagon Sampler 5E-CYH-Q Railway Wagon Sampler
Type Wagon sampler of door type Wagon sampler of bridge type
Power 40-70kw 40-70kw
Single Point Sampling Time 70-100s 70-100s
System Efficiency ≥ 15 units/h ≥ 15 units/h
Power Consumption 20kw/h-30kw/h 15kw/h-25kw/h
Controlling Mode Auto/Semi-auto/Manual Auto/Semi-auto/Manual
