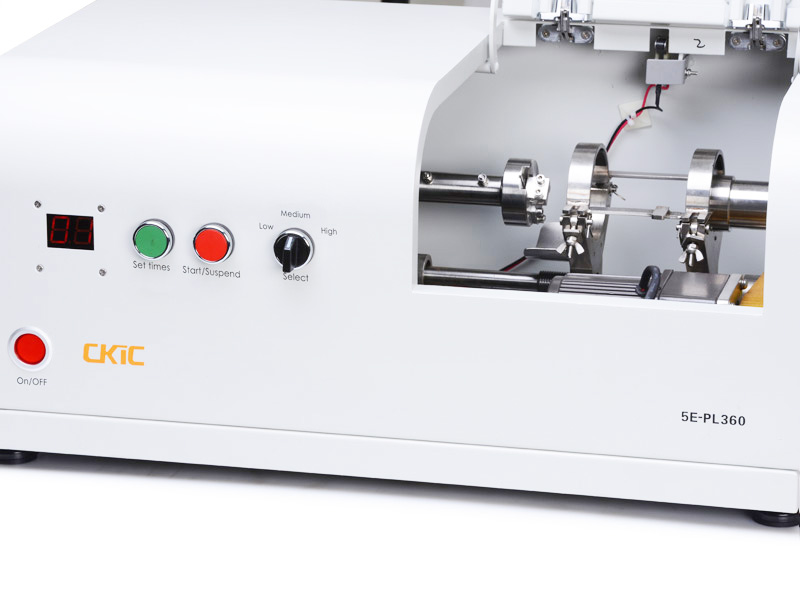

5E-PL360 Automatic Coal Cup Cleaner

5E-PL360 Automatic Coal Cup Cleaner is specially used to clean the coke breeze inside of coal cup after the plastometric indices testing.

Please leave your E-mail address before download the product PDF. Your cooperation is appreciated.

Warm prompt: Please make sure you entered a correct E-mail address. We will send you relevant information and product quotation regularly.

  • Features
  • Specification
  • Spare parts
  • Case

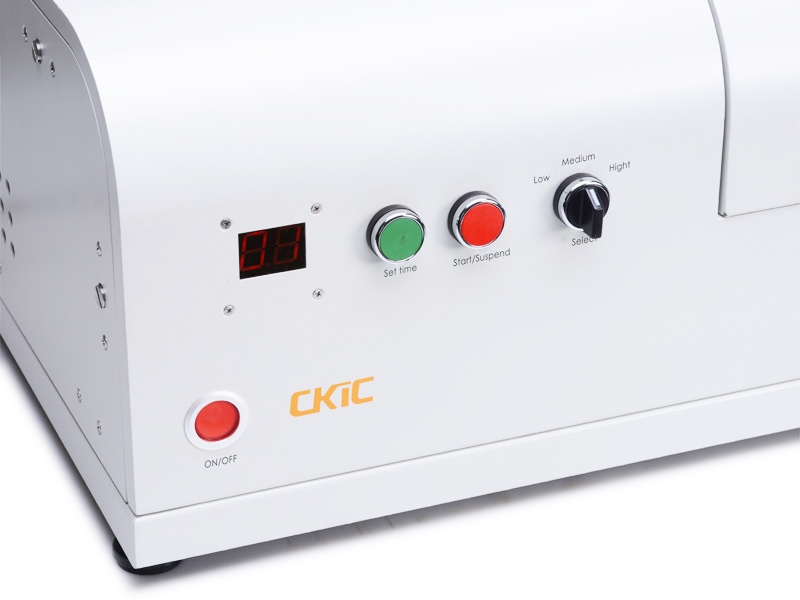

Features:1. Free adjustment of impeller rotating speed and cleaning times.

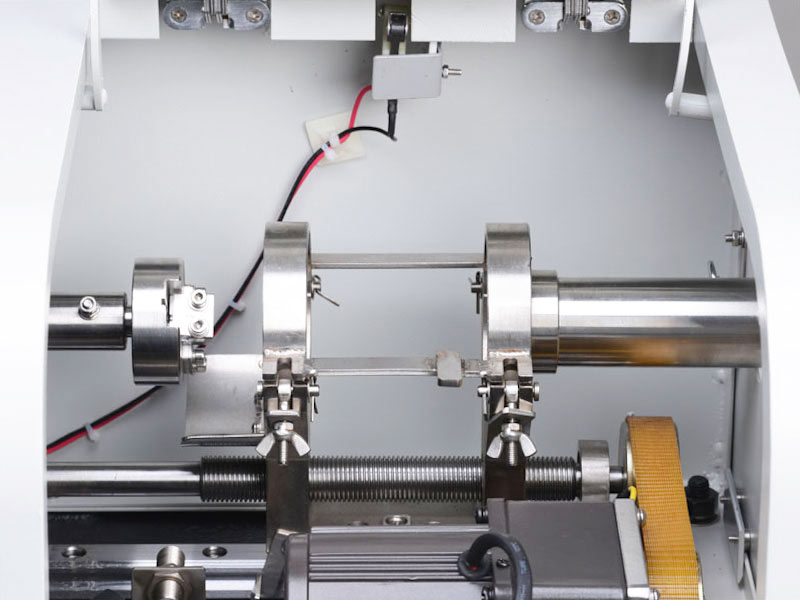

2. Clean coal cup back and forth continuously to ensure full cleaning.
3. Safely operation with sensitive switch, power-off when loading the coal cup.
4. Equipped with position detection and resetting when switched on.

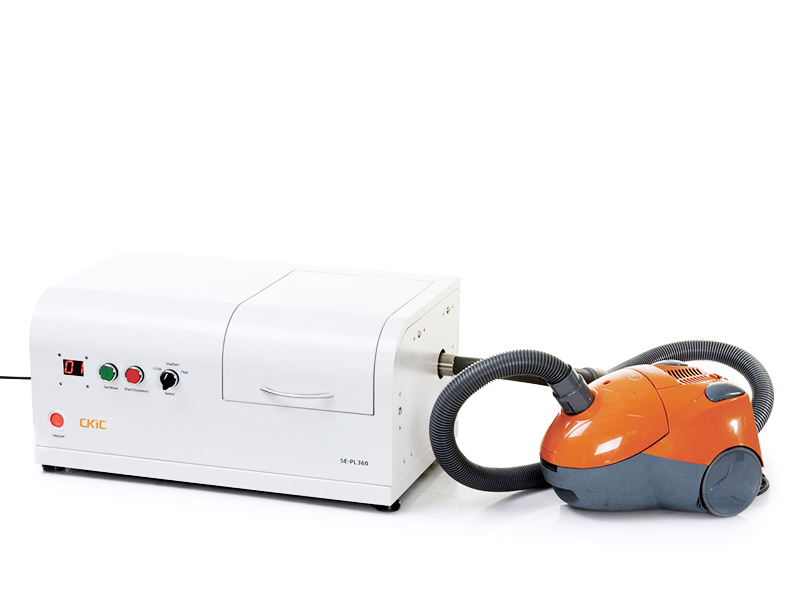

5. Vacuum cleaner connection available.

Model 5E-PL360 Automatic Coal Cup Cleaner
Cleaning Times 1-9 settable
Main Power Motor 120W
Max.Rev 1400/min, 220V/50Hz
Speed-down Motor Power 25W
Reduction ratio 30Rev. 50/min 220V/50Hz
Gross Weight 100kg
Dimensions(L×W×H) 614mm×370mm×280mm
