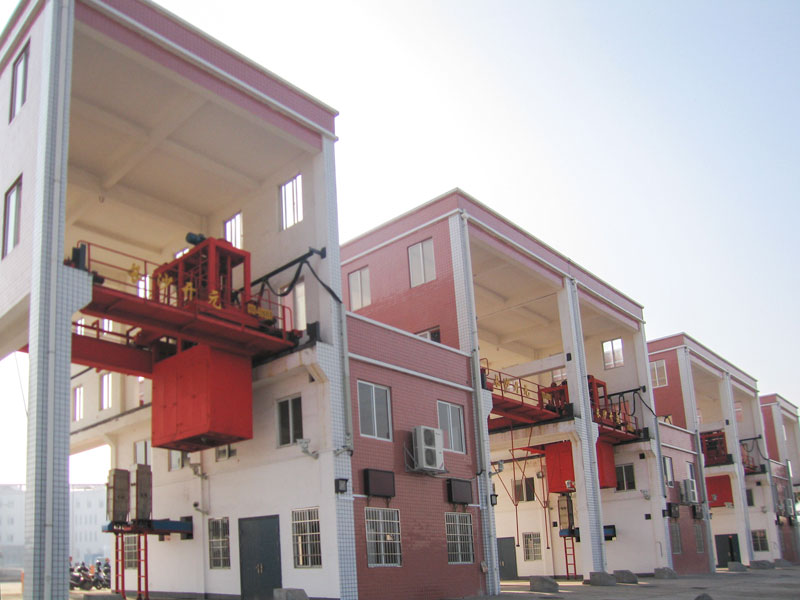

5E-CYQ Road Wagon Sampler

5E-CYQ Road Wagon Sampler is used for random sampling of bulk materials in the carriage of train or truck. It consists of sampling system, electrical control system, automatic ultrasonic positioning system and coal surface detecting device.

Please leave your E-mail address before download the product PDF. Your cooperation is appreciated.

Warm prompt: Please make sure you entered a correct E-mail address. We will send you relevant information and product quotation regularly.

  • Features
  • Specification
  • Spare parts
  • Case

Features:
1. Two augers can be equipped to meet the demands of sampling different materials.
2. Full section sampling fully comply with the mechanical sampling standard.
3. Single point sampling and multipoint sampling are available to increase the efficiency.
4. Automatic ultrasonic positioning technology an sampling ensures reliable results without human interference.
5. Reduction and division of the material by online sample preparation system is available if it is needed.
6. Capable to connect with information management system.
7. Control methods: Touch Screen Controller+PLC/Automatic/Semi-Auto/Manual.


Intergration Solution for Sampling and Sample Preparation:
Road/Railway Wagoin Sampler + Auto Barreling +  Manual Transfer

Model 5E-CYQ Road Wagon Sampler
Type Vehicle sampler of bridge type
Power 40-70kw
Single Point Sampling Time 70-100s
System Efficiency ≥ 15 units/h
Power Consumption 15kw/h-25kw/h
Controlling Mode Auto/Semi-auto/Manual


Different type of sampling head for bulk material (nominal top size ≤ 50mm) is as follows.

Sampling Head


Application

Moisture Adaptability

Model

Aperture of Cutter

Max. Sampling mass

Rotary Cylinder Auger

Coal, Limestone, Coke, Lump Ore, Iron Ore, Zinc Power

≤35

CTB20N.00

Φ200

16L

CTB15N.00

Φ150

10L

Long Spiral Auger

Coal

≤20

LLC26033J.00

Φ273

110L

Short Spiral Auger

Coal Limestone, Pellet, Iron Ore, Zinc Power

≤10

LCT273.00

Φ273

15L

LCT325.00

Φ325

25L
