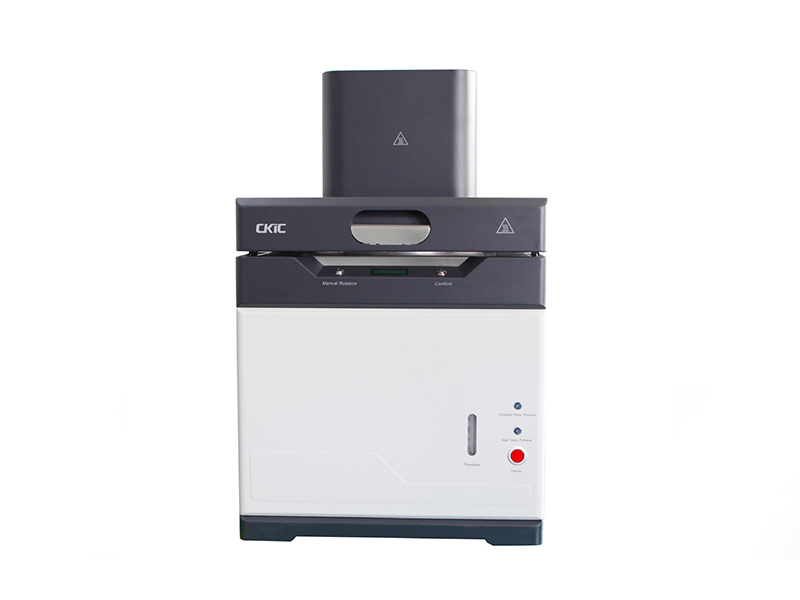

5E-MVC6700 Automatic Volatile Matter Analyzer

5E-MVC6700 Automatic Volatile Matter Analyzer is used to determine volatile matter in coal and coke. It can also determine residual ash and slag combustibles in accordance with ASTM, which is widely applied in power plant, coal mine, metallurgy, chemical industry, commercial inspection, scientific research, education, etc.

Please leave your E-mail address before download the product PDF. Your cooperation is appreciated.

Warm prompt: Please make sure you entered a correct E-mail address. We will send you relevant information and product quotation regularly.

  • Features
  • Specification
  • Spare parts
  • Case
Standard Configuration:Computer
Printer
Main analyzer
Air compressor
Volatile matter crucibles
Weighing rod base

Weighing rod
Three-core power socket and plug/20A
Crucible lid for volatile matter
Glass spoon(small size)
Standard Reference Material(GBW)
Tool kit


Features:
Easy Operation 1. Real time display of balance reading, which makes it convenient to control the precision of sample weight.
2. Patented design to avoid the crucibles fall down during crucible sending.

High Accuracy Thermogravimetric technology with empty crucible calibration in the same atmosphere to ensure weighing accuracy.

Model 5E-MVC6700 Automatic VolatileMatter Analyzer
Conforms to method ASTM D7582, ISO 18123
Max. Sample Loading 19
Analysis Time 19 samples within 120mins
Temp. Range Up to 1050℃
Temp. Control Precision ±2℃
Power Supply Single phase, AC220V±10%, 50/60Hz, ≤2.5kW
Net Weight 80kg
Dimensions (L×W×H) 550mm×580mm×890mm
