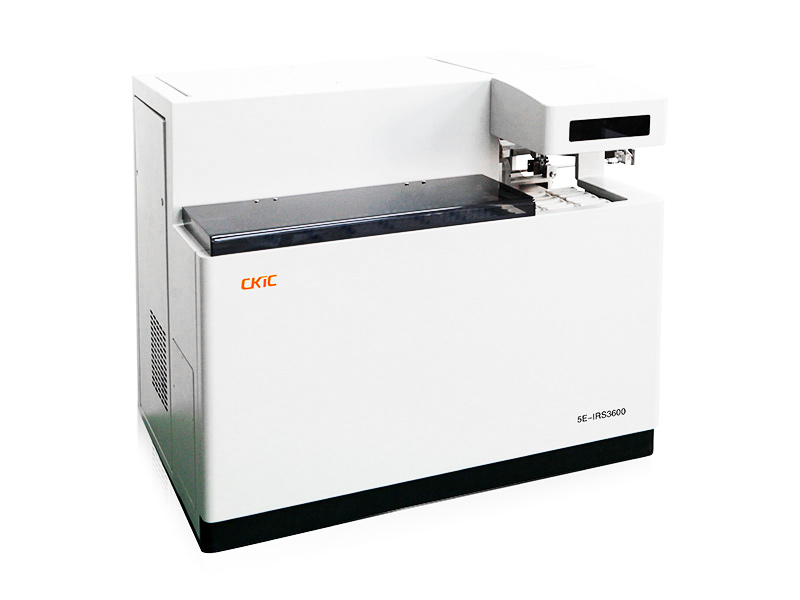

5E-IRS3600 Automatic Infrared Sulfur Analyzer

5E-IRS3600 Automatic Infrared Sulfur Analyzer is used to determine the total sulfur content by infrared absorption, which is widely applied in power plants, coal mines, metallurgy, chemical industry, commercial inspection, scientific research, etc.

Please leave your E-mail address before download the product PDF. Your cooperation is appreciated.

Warm prompt: Please make sure you entered a correct E-mail address. We will send you relevant information and product quotation regularly.

  • Features
  • Specification

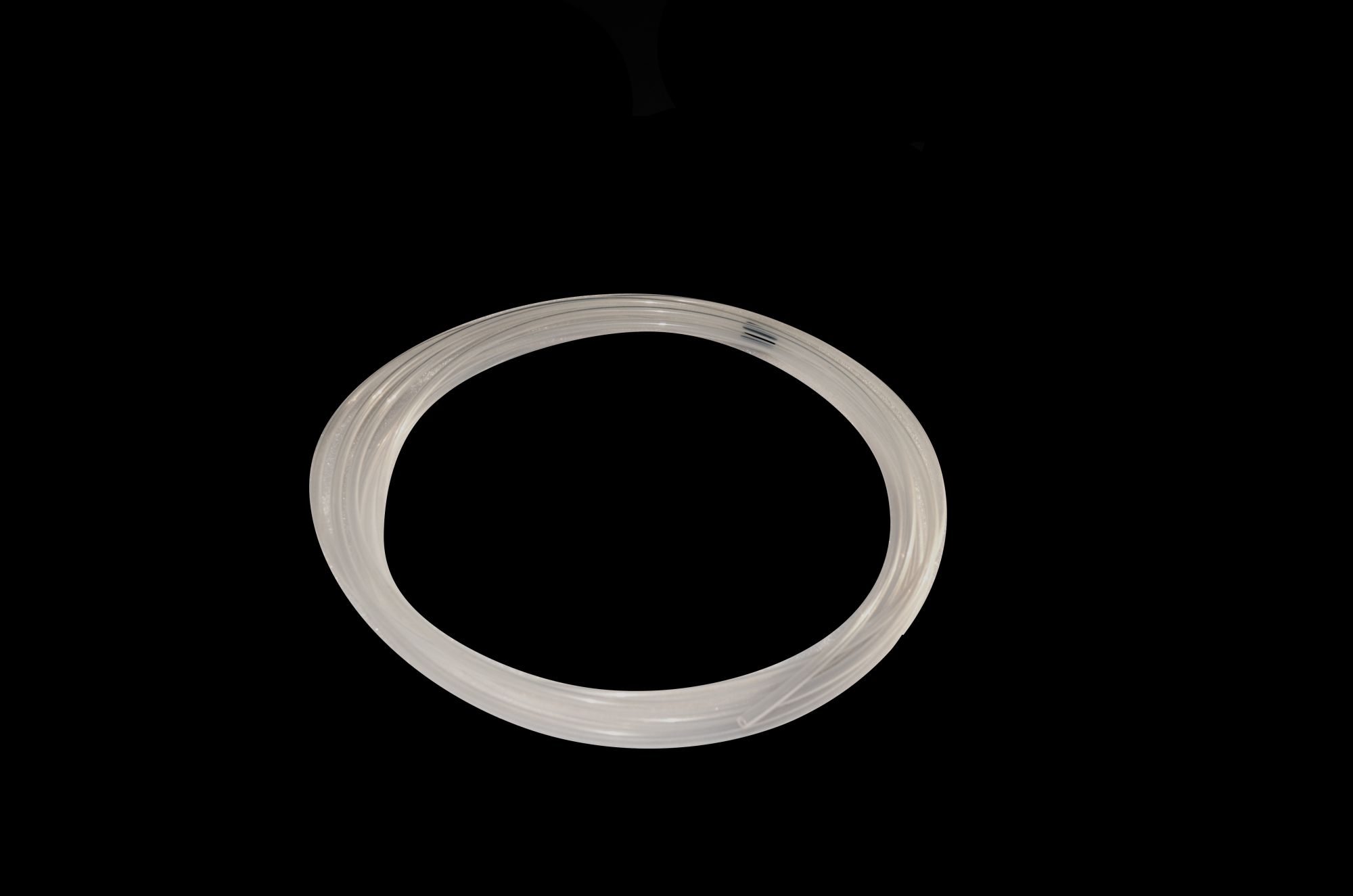

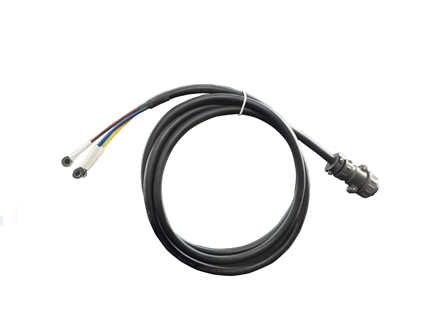

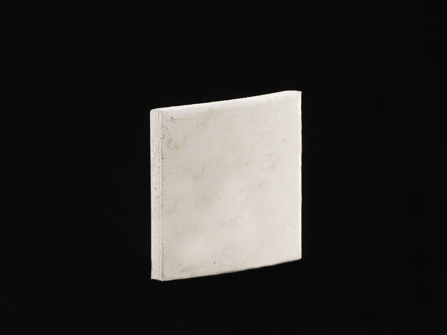

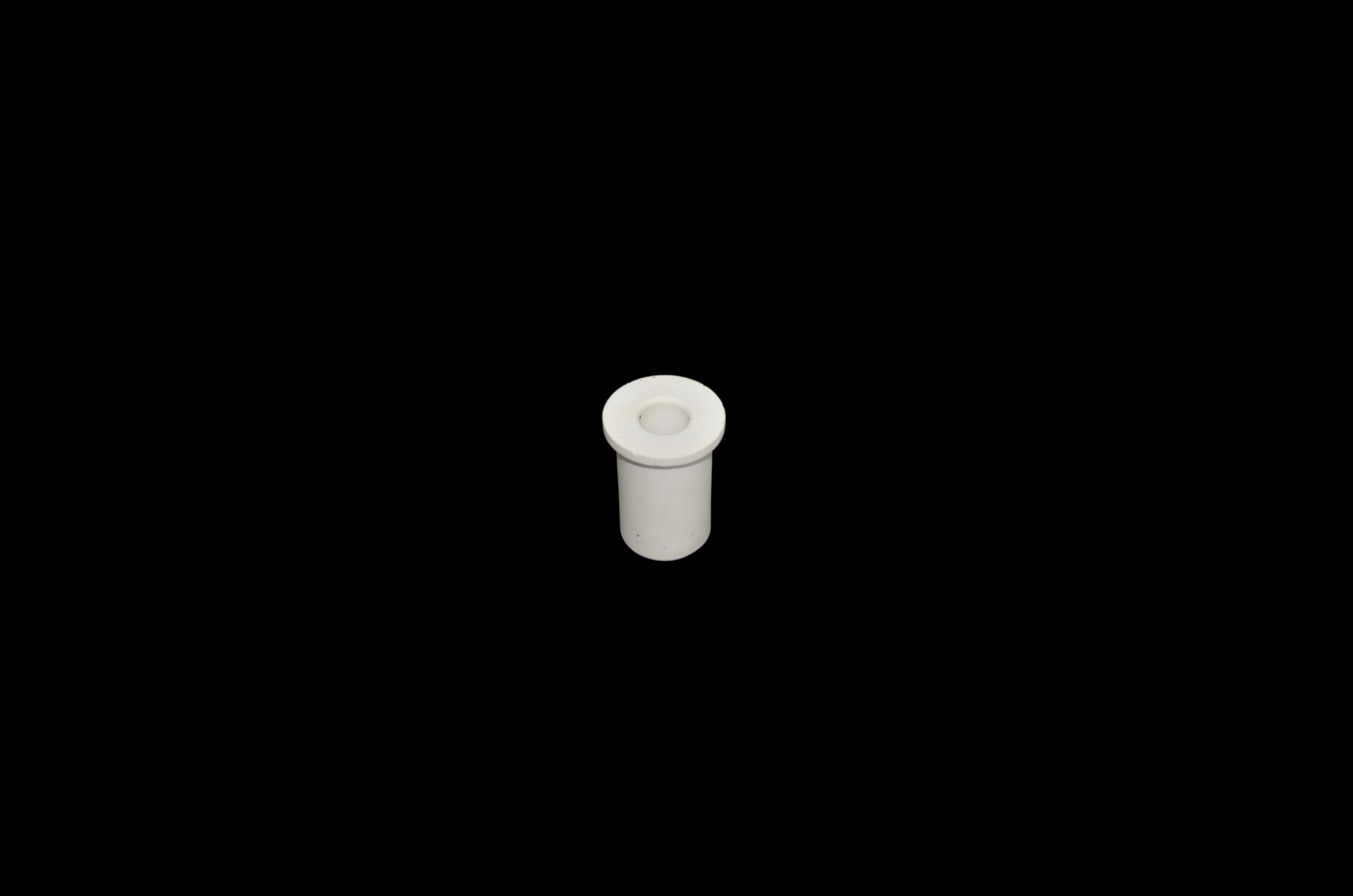

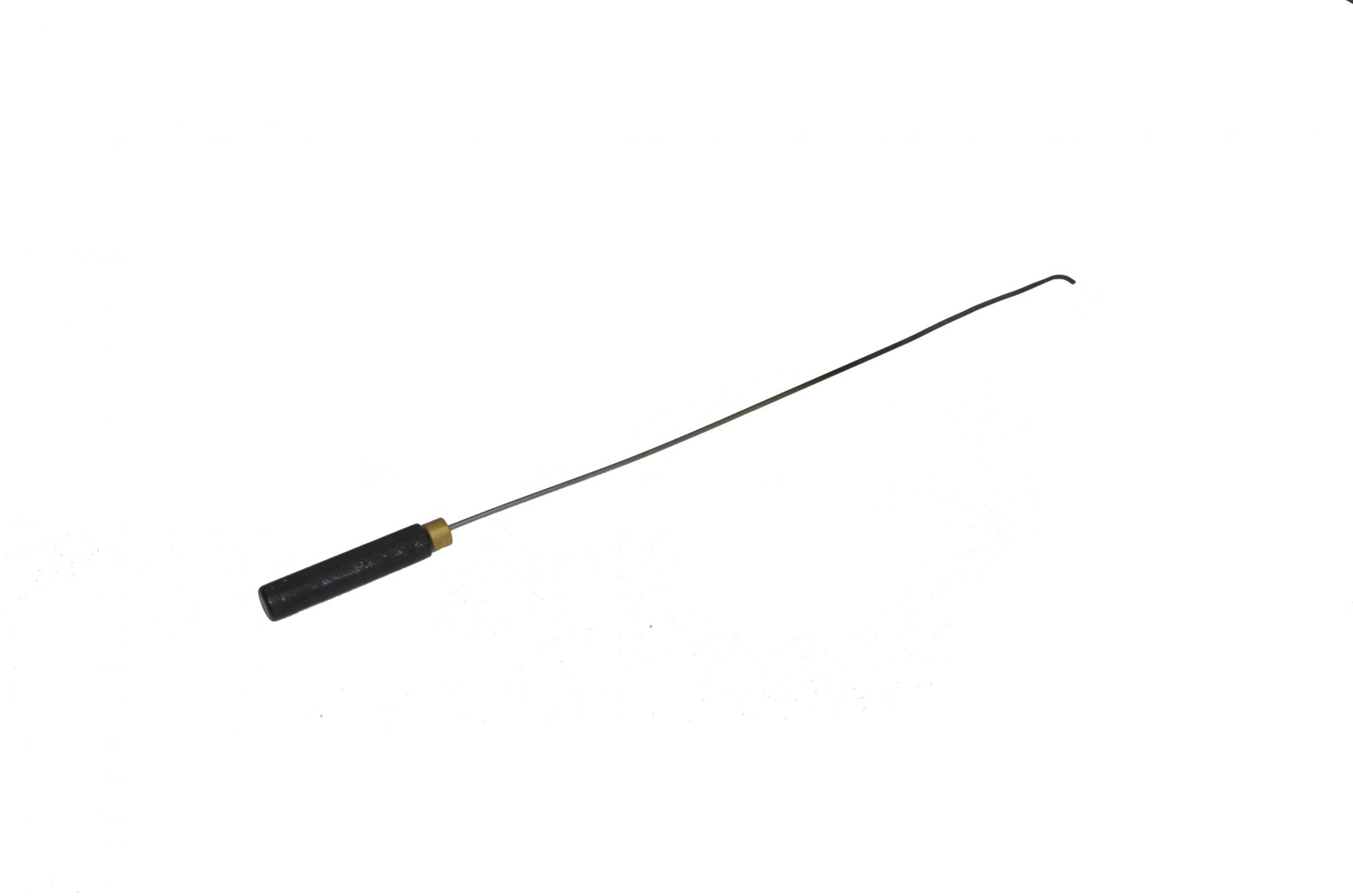

  • Spare parts
  • Case
Standard Configuration: Computer
Printer
Main analyzer
A/C adapter

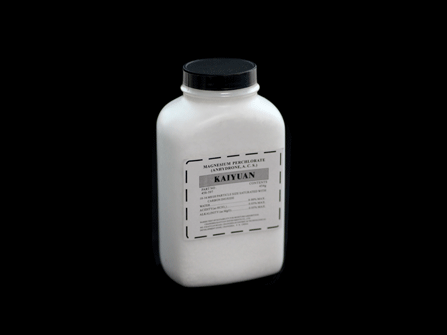

Anhydrone

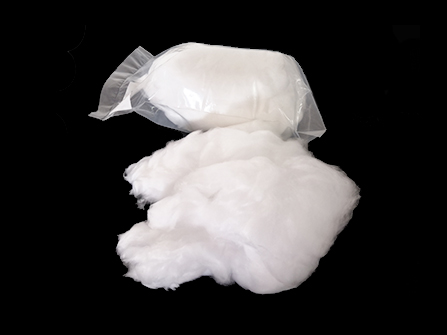

Silica wool
Standard Reference Material(GBW)

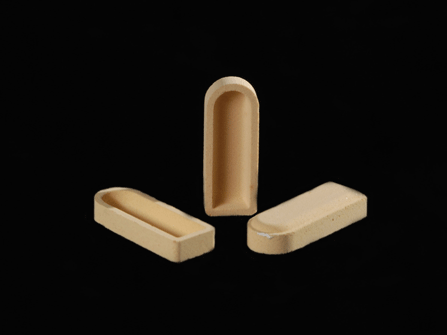

Crucibles

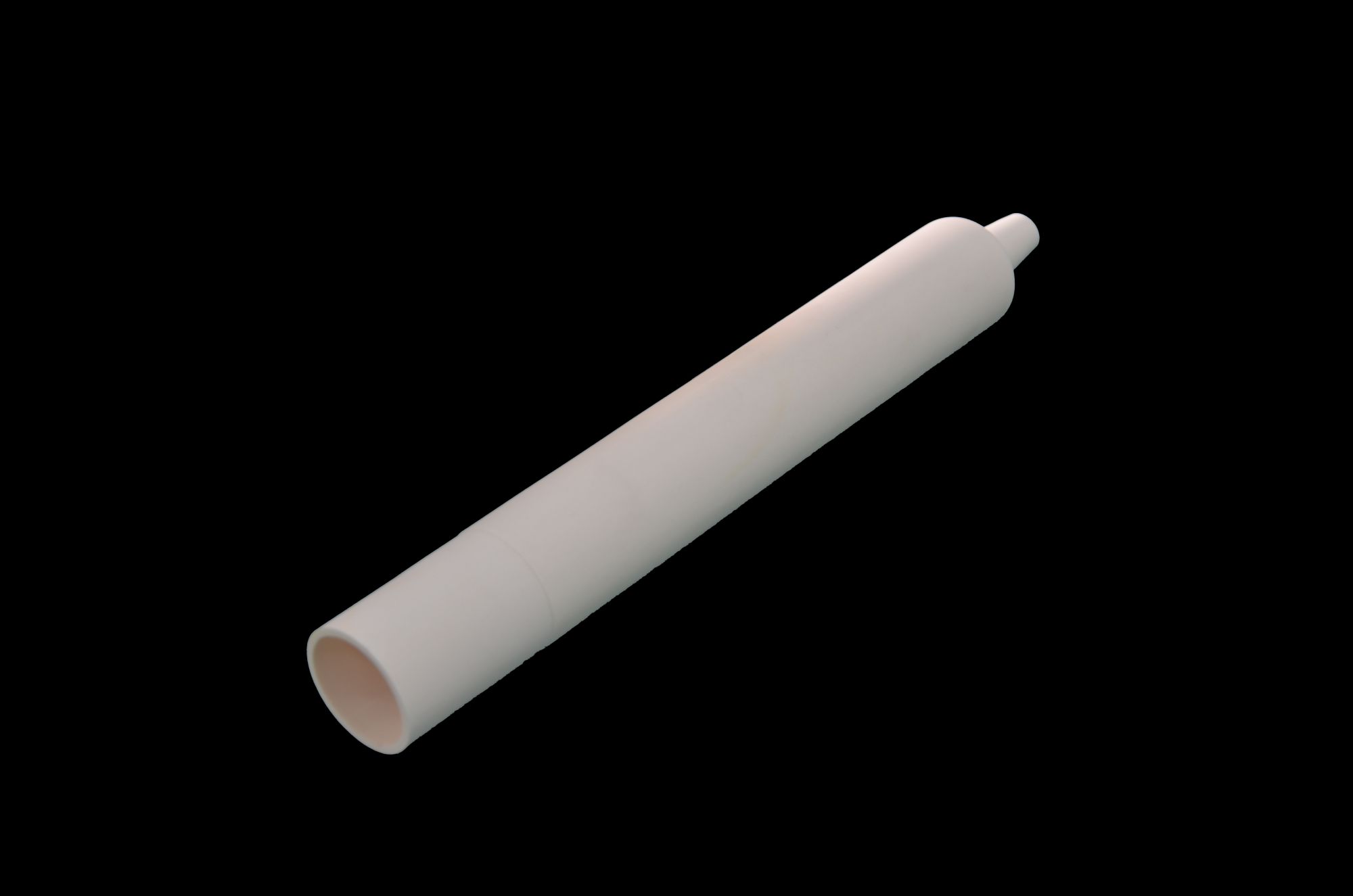

Outer combustion tube

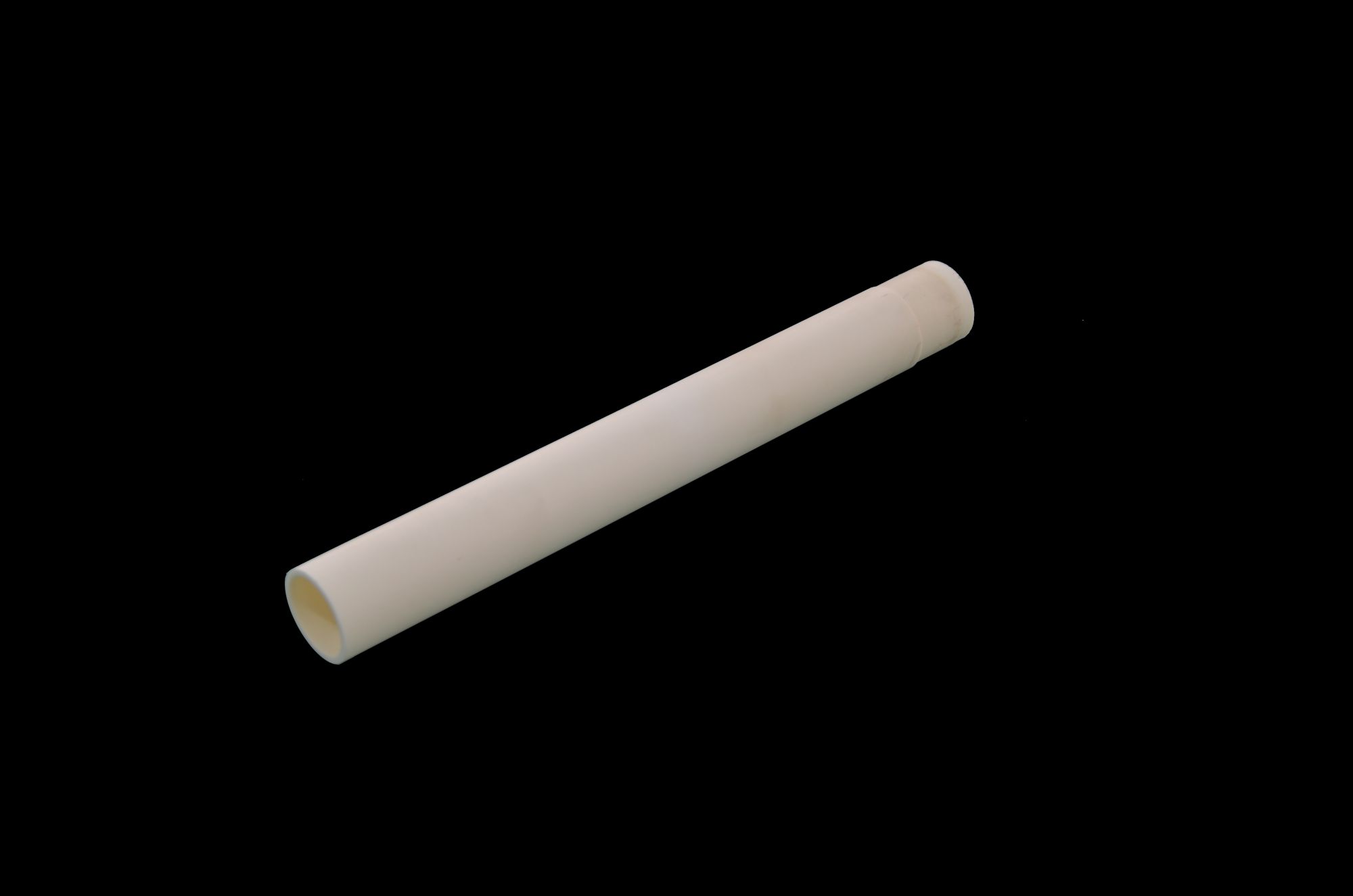

Inner combustion tube
Boat stop
O-ring kit

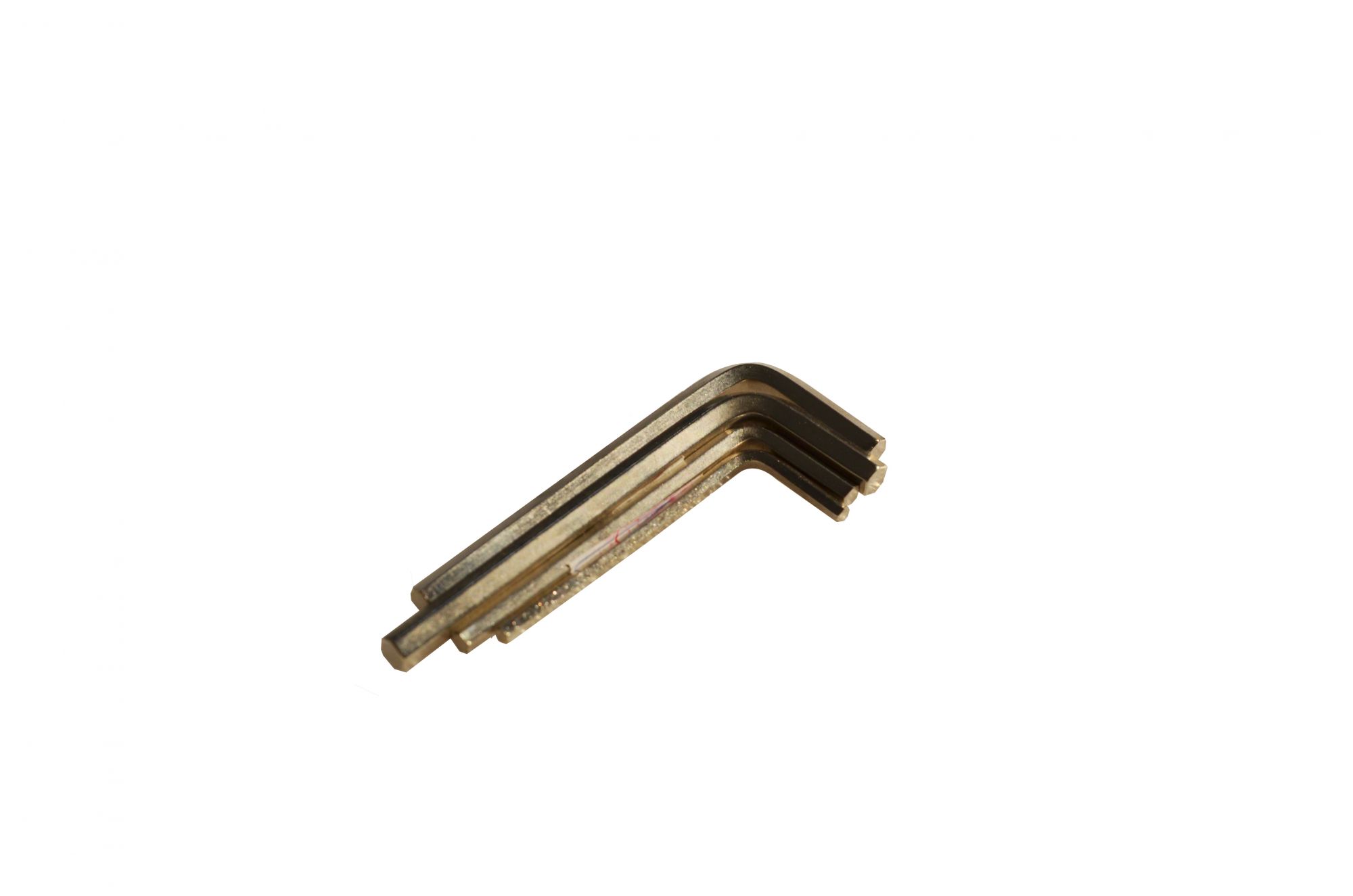

Tool kit

Features:High Automation

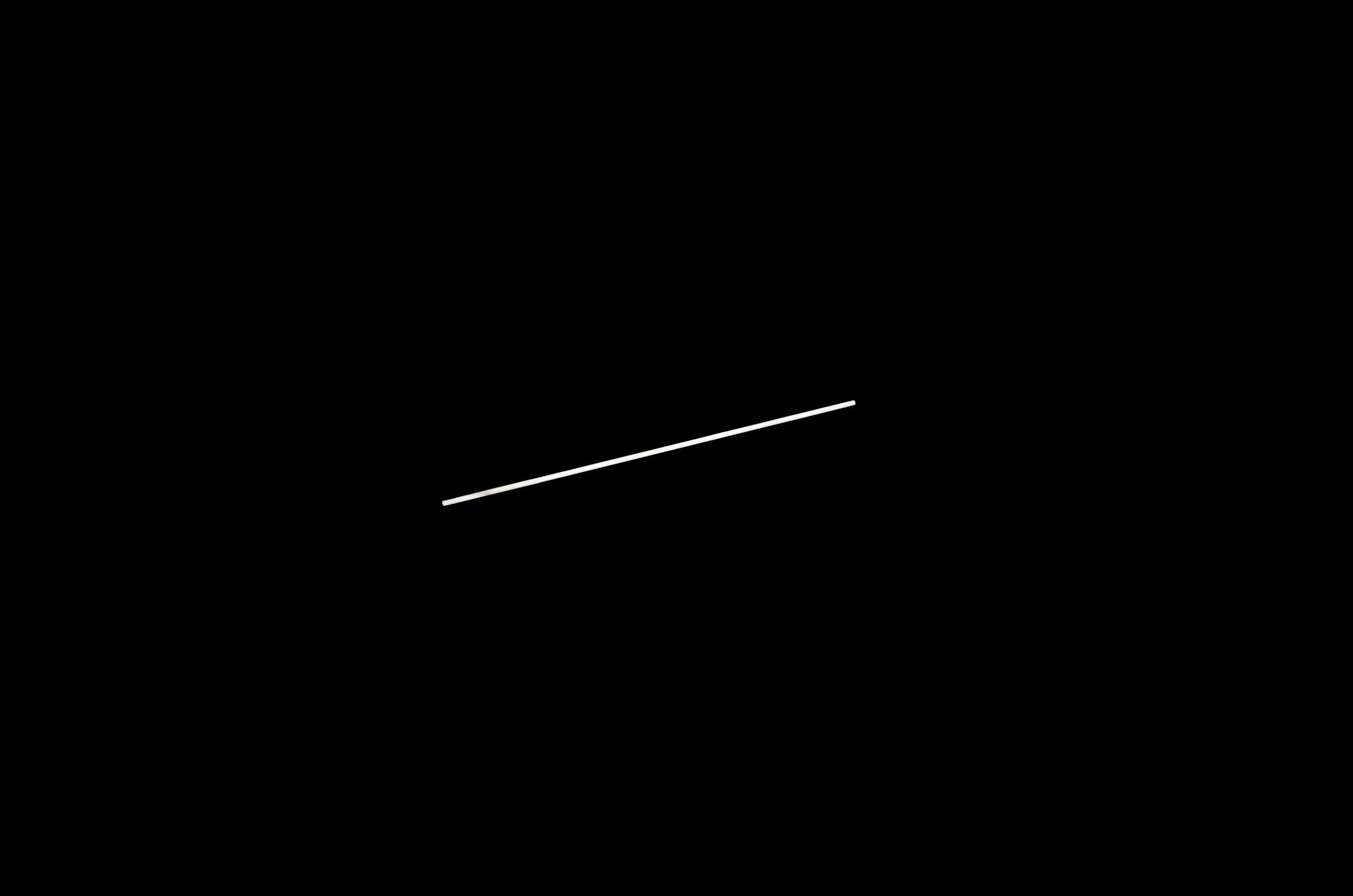

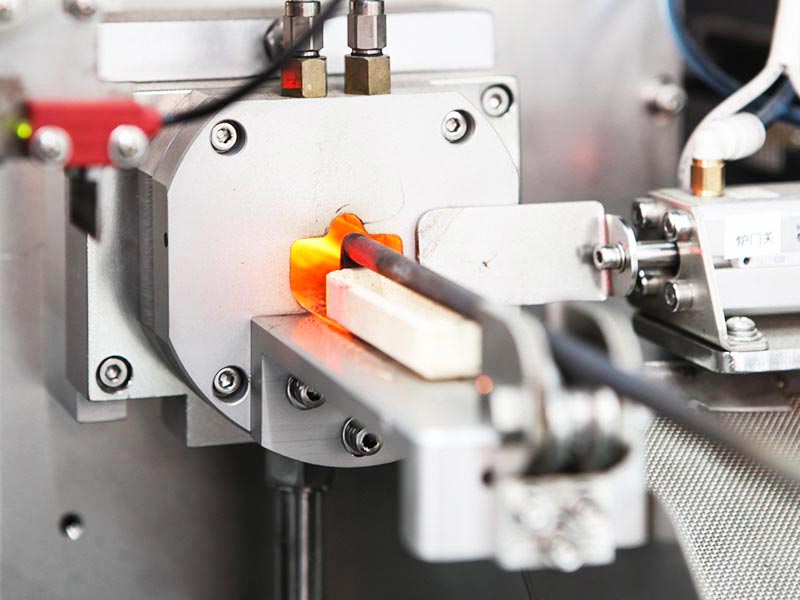

1. Unique dual oxygen lance to increase the combustion efficiency.

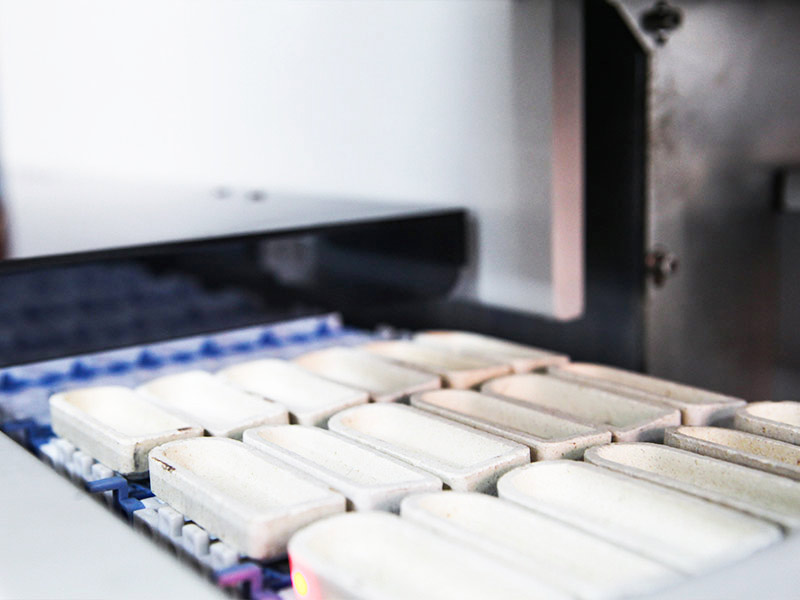

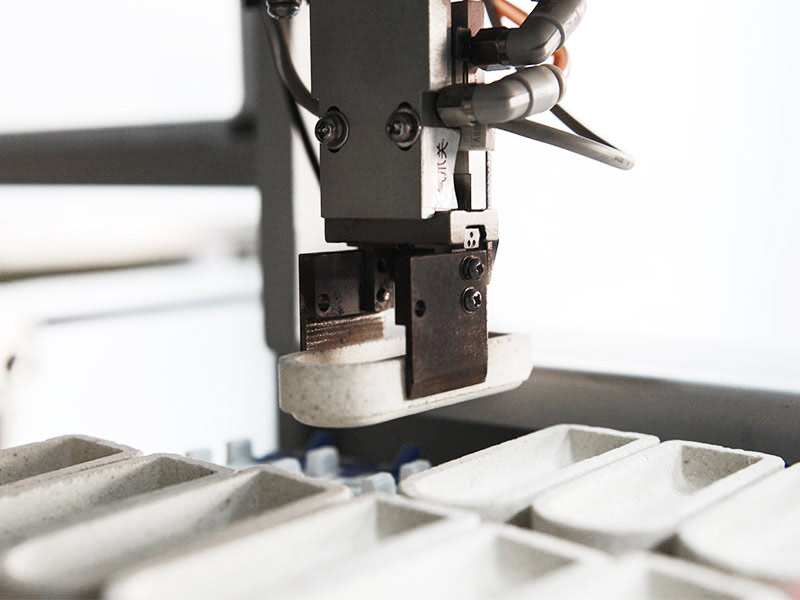

2. Maximum throughput with auto-loader, available for 60 samples per batch and easy to add or reduce sample quantity during analysis.
3. Patented sample delivering system realizes smooth work flow of pulling and discharging samples.
4. The sample mass can be automatically sent to the computer by balance connection.

5. Available for unattended operation by intelligent sensor.
6. Auto self-diagnosis and auditory alarm.

Accuracy and Stability

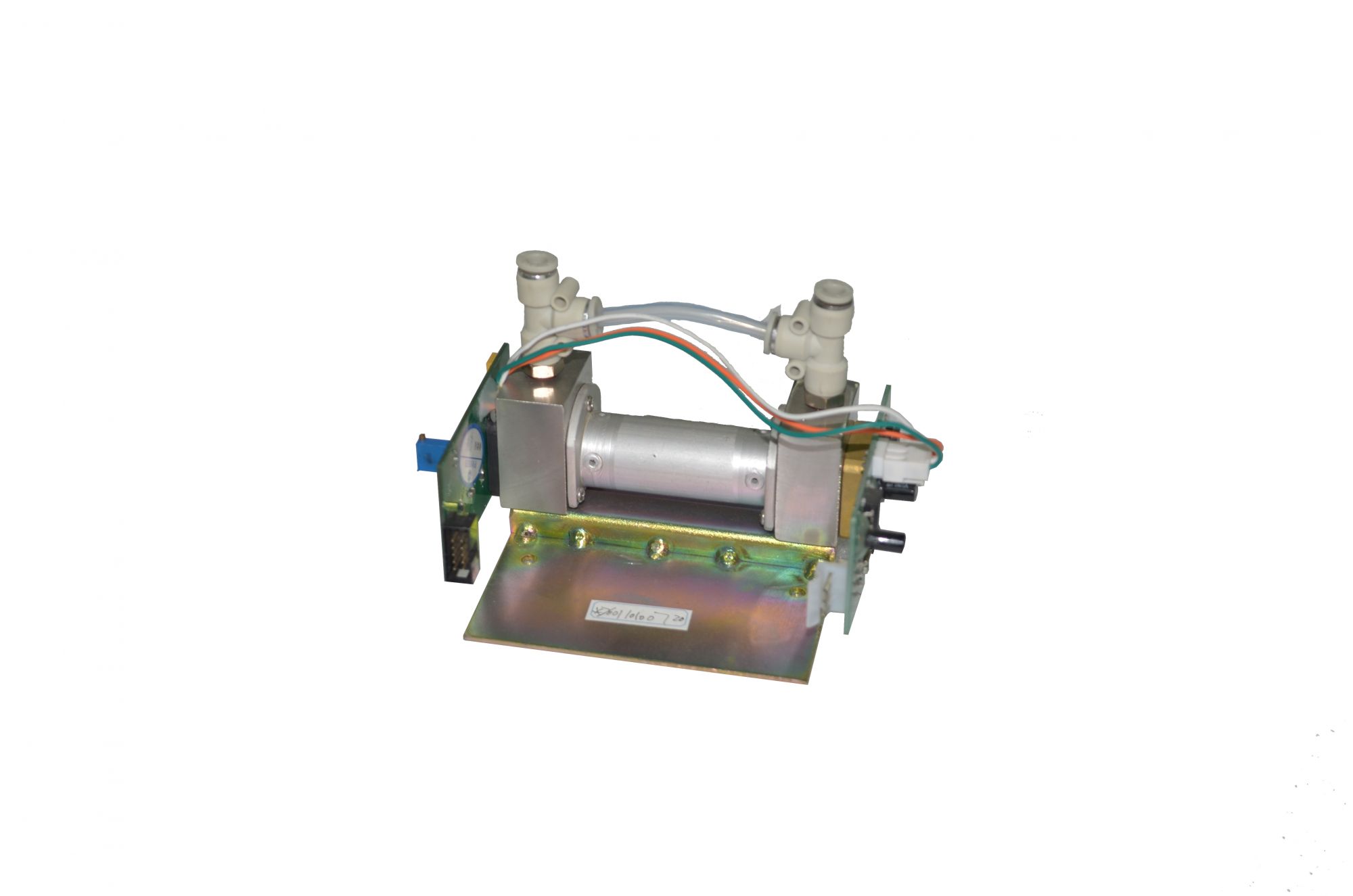

1. Top quality ultra-low drift infrared cell to ensure stability of the testing results.

2. Reliable single Si-C spiral tube heating components.
3. Unique gas tightness structure to avoid the effect of SO2 in air.

Environmental Protection
Exhaust emissions ventilation system to avoid air pollution of laboratory.

Video of 5E-IRS3600

Model 5E-IRS3600 Automatic Infrared Sulfur Analyzer
Conforms to Method AS 1038.6.3.3, ASTM D1552, ASTM D3177, ASTM D4239, ASTM D5016,
ISO19579,
GB/T 214, GB/T 25214, GB/T 28732, BS 1016
Max. Sample loading Up to 60 sample per batch manually
Analysis Method Infrared absorption
Analysis Resolution 0.001%
Sulfur Range 0.01%-30% Customized range available
Analysis Time per Sample ≤120s
Analysis Temp. 1350
Temp.Control Precision ±1
Sample Mass 200mg-400mg (300mg is recommended)
Power Supply Single phases, AC220V±10%, 50/60Hz, ≤4KW
Net Weight 70kg
Dimensions(L×W×H) 750mm×650mm×700mm
