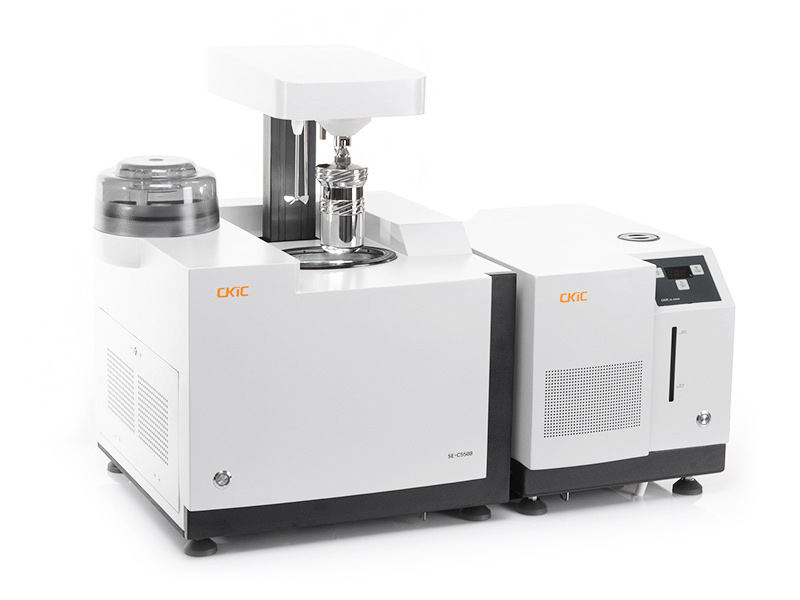

5E-C5508 Automatic Calorimeter

5E-C5508 is used to determine the calorific value of solid and liquid combustibles including oil, coal, coke, foodstuffs and biomass products. The calorific value is a crucial characteristic for each substance, also the key point to calculate the price of coal, so it will directly affect the economic benefits of the customers. This technique is widely applied in power plants, coal mines, metallurgy, chemical industry, commercial inspection, scientific research, etc.

Please leave your E-mail address before download the product PDF. Your cooperation is appreciated.

Warm prompt: Please make sure you entered a correct E-mail address. We will send you relevant information and product quotation regularly.

  • Features
  • Specifications
  • Spare parts
  • Case
Standard Configuration: Main analyzer: Controlling Unit and Chiller
Standard CV bomb
Data System (PC & Printer)
Crucibles

Optional Configuration:
Copy paper
Pellet press
Halogen Resistant Oxygen Vessel


Ignition Wire
Benzoic Acid
O-ring kit
Tool kit





Features:
With all 5E-C5500 features, additionally
Fully Automatic Oxygen Charging System
Integrated oxygen charging system, straight connection to oxygen cylinder via regulator, controlled by solenoid valve, 5E-C5508 is available for oxygen charging automatically.

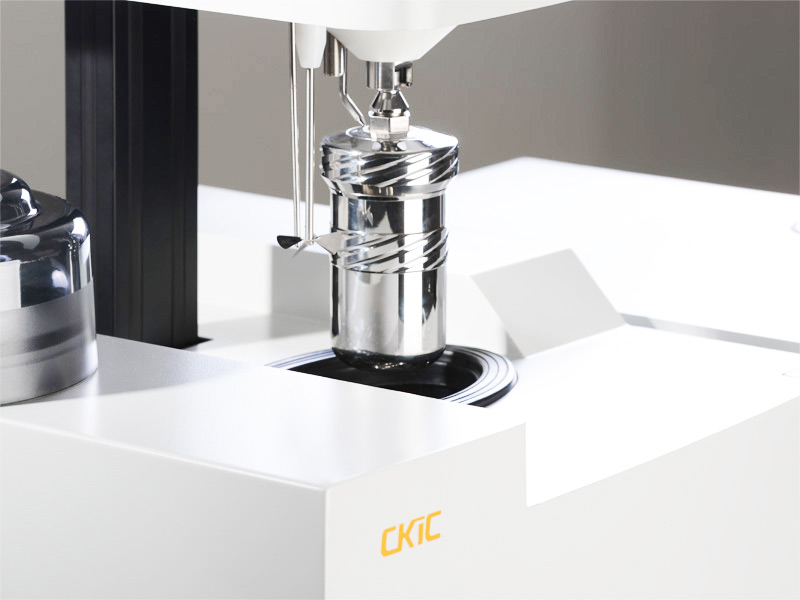

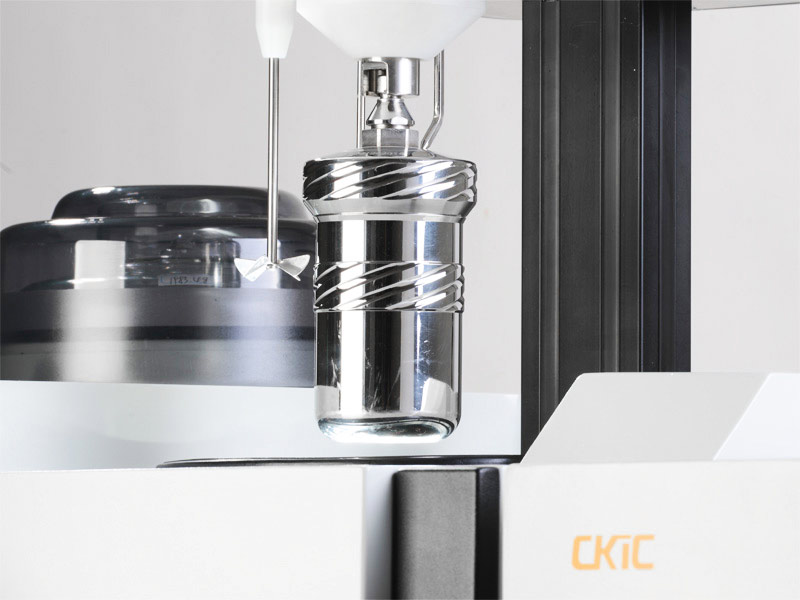

Fully Automatic Oxygen Vessel  Lifting SystemConvenient operation compared with manual filling, in case of any slipping off. Water filling and draining during lifting, minimize the time for analysis and preparation.

Model 5E-C5508 Automatic Calorimeter
Conforms to Method AS 1038.5, ASTM D5865, ASTM D4809, ASTM E711, BIS 1350, BS EN 15400, GB/T213, GB/T30727, ISO1928, ISO9831
Precision (1g Benzoic Acid) 0.05%RSD*
Measuring range Up to 40MJ/kg
Temp.Resolution 0.0001
Control Ability 2 Units/ 1 PC available
Analysis Time per Sample Dynamic method:10 mins ; Classical method:15 mins
Test Per Hour Single control Double control
Up to 6 Up to 12
Jacket Type Isoperibol
Bomb Identification Up to 2 for automatic, several for manual
Balance Connection Available
Network Connection Available
Bucket Filling Automatic
Oxygen Filling Automatic
Structure Benchtop
Bomb Vessel Lifting Automatic
Power Supply Single phase, AC220V±10%, 50/60Hz, ≤500W
Net Weight 80kg
Dimensions(L×W×H) Analysis unit: 580mm×550mm×550mm Temp. control unit: 370mm×540mm×400mm
* Test Condition: 1. Ambient temp.20℃±1℃,humidity75%±5%  2.No strong interference source nearby  3.Clean water circuit with distilled water
