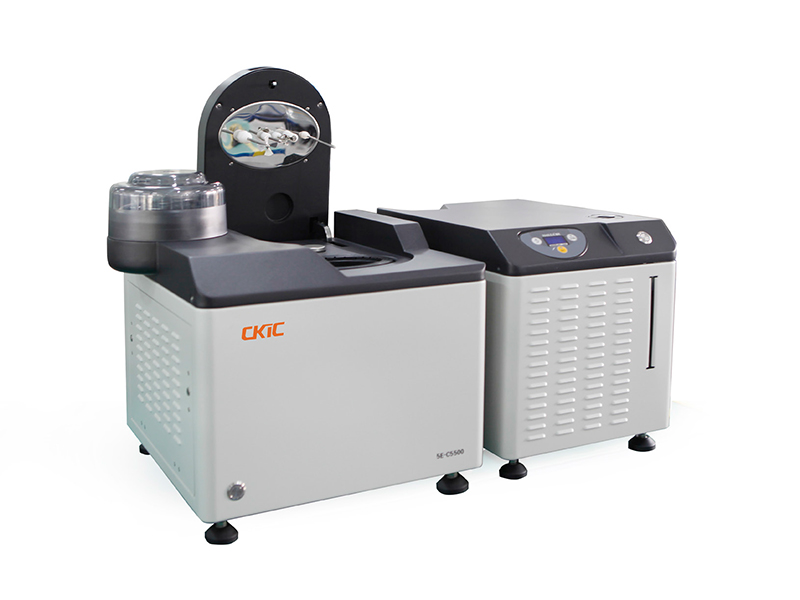

5E-C5500 Automatic Calorimeter

5E-C5500 is used to determine the calorific value of solid and liquid combustibles including oil, coal, coke, foodstuffs and biomass products. The calorific value is a crucial characteristic for each substance, also the key point to calculate the price of coal, so it will directly affect the economic benefits of the customers. This technique is widely applied in power plants, coal mines, metallurgy, chemical industry, commercial inspection, scientific research, etc.

Please leave your E-mail address before download the product PDF. Your cooperation is appreciated.

Warm prompt: Please make sure you entered a correct E-mail address. We will send you relevant information and product quotation regularly.

  • Features
  • Specifications
  • Spare parts
  • Case
Standard Configuration: Main analyzer: Controlling Unit and Chiller
Standard CV bomb
Computer
Handle Oxygen Charger

Crucibles

Optional Configuration:
Lens paper
Pellet press
Bench-top oxygen charger
Halogen Resistant Oxygen Vessel


Ignition Wire
Benzoic Acid
O-ring kit
Tool kit






Features:
True Isoperibol CalorimeterThe jacket surrounding the vessel is kept at constant temperature with an accuracy to 0.1 during analysis.Mechanical supports for the vessel are made of a very lowthermal conductivity plastic. To minimize convention,water is added on the sides,top and bottom of the bucket.

High Automation and Efficiency
1. Dynamic method available, without compromising accuracy or precision.
2. Second oxygen vessel and sample can be prepared while the current sample is being analyzed.
3. Two calorimeters can be controlled by one computer.Sample mass can be transferred to PC directly.

Optimized Design for Reliable Test Result1. A reliable quantitative measuring cup ensures stable water volume of the bucket.
2. Closed-loop water circulation assures the purity of water system without any additional solution.
3. Filter in the bucket purify the water in circulation system.

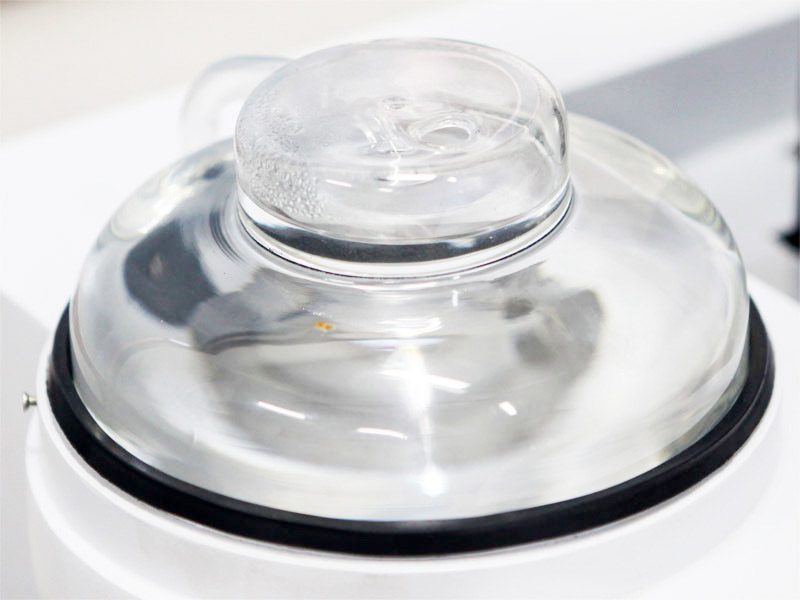

4. Visible water level indicates the water volume, making it easy to feed sufficient water anytime to minimize the influence of water loss.

Model 5E-C5500 Automatic Calorimeter
Conforms to Method AS 1038.5, ASTM D240, ASTM D5865, ASTM D4809, ASTM E711, BIS 1350, BS EN 15400, GB/T 213,GB/T 30727, ISO 1928, ISO 9831,ISO 18125
Precision (1g Benzoic Acid) 0.05% RSD *
Measuring range Up to 50000J
Temp.Resolution 0.0001
Control Ability 2 Units/ 1 PC available
Analysis Time per Sample Dynamic method:10mins; Classical method:15mins
Jacket Type Isoperibol
Jacket Type Isoperibol
Heating Capacity Stability ≤0.2% within one year
Balance Connection Available
Network Connection Available
Bucket Filling Automatic
Oxygen Filling Semi-Automatic
Structure Benchtop or Vertical
Bomb Vessel Lifting Manual
Power Supply Single phase, AC220V±10%, 50/60Hz, ≤500w
Net Weight Bench top: 75kg
Vertical type: 103kg
Dimensions(L×W×H) Bench top:
480mm×500mm×420mm (Analysis unit)
370mm×500mm×420mm (Temp. control unit)
Vertical: 480mm×500mm×940mm
*Test Condition: 1. Ambient temp.20℃±1℃,humidity75%±5%  2. No strong interference source nearby  3. Clean water circuit with distilled water  4. Refer to the precision of ten acceptable calibration test runs
