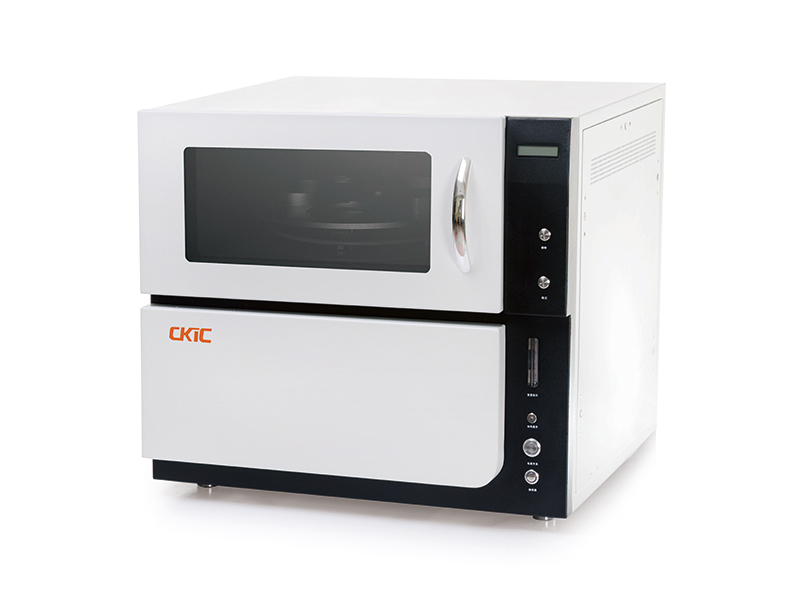

5E-MW6520 Automatic Moisture Analyzer

5E-MW6520 Automatic Moisture Analyzer is used to determine the total moisture and air dry basis moisture in coal, coke, biomass and other solid substance, which is widely applied in thermal power plants, coal industry, metallurgical, petrochemical, cement plants, research institutes and inspection company.

Please leave your E-mail address before download the product PDF. Your cooperation is appreciated.

Warm prompt: Please make sure you entered a correct E-mail address. We will send you relevant information and product quotation regularly.

  • Features
  • Specification
  • Spare parts
  • Case
Standard Configuration:Computer
Main analyzer

Scale beam
Balance base
Tool kit

Unique Device(Upgrade Option)
Forced nitrogen convection for drying is available for arbitration purpose.

Improved Efficiency

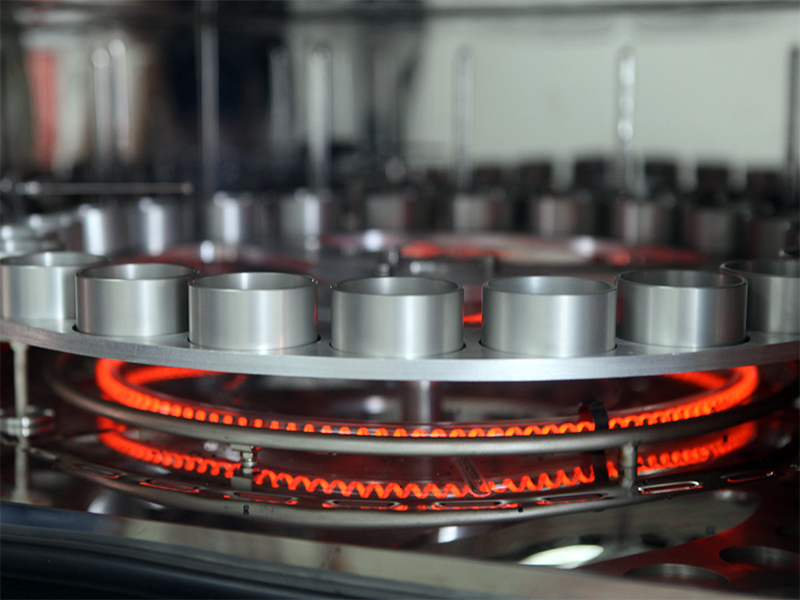

1. Use the light wave tube for heating. Energy efficiency has been raised by 15% comparing with other traditional method.
2. Equipped with cooling device to shorten waiting time before next analysis. Test efficiency has been raised by 25%.

Friendly Operation
1. Built-in balance for real-time display, which makes it convenient to control the precision of sample weight.
2. Equipped with the functions of power-off protection.

Model 5E-MW6520 Automatic Moisture Analyzer
Sample Mass 22 samples
Analysis Range 0.1%- 97%
Precision Complied with ISO/ASTM standards
Analysis Time Classical mode: 25-45mins,
Quick mode: 15-25mins
Temp. Control Range Up to 150℃
Sample Size 0.2mm for Mad, 6mm for Mt
Max. Weight of Balance 220g
Resolution of Balance 0.0001g
Power Supply Single phase, AC220V±10%, 50/60Hz
Net Weight 60 kg
Dimensions (L×W×H) 700mm×650mm×625mm
