5E-S32 Series Sulfur Analyzer^NEW!

CKIC Sulfur Analyzer is used to determine the total sulfur content in coal and liquid fuel. A sample is combusted in a dry air atmosphere; the gases evolved go to a electrolytic cell containing platinum indicating electrodes and platinum electrolysis electrodes. A small current is produced as the sulfur reacts with electrodes; the current is balanced and equivalent to the amount of sulfur present in coal.

Get a Quote Online Inquiry Send E-mail PDF Download

Please leave your E-mail address before download the product PDF. Your cooperation is appreciated.

Warm prompt: Please make sure you entered a correct E-mail address. We will send you relevant information and product quotation regularly.

Features
Specification
Spare parts
Case

Standard Configuration:
Computer
Main analyzer
Electrolytic cell
Standard Reference Material(GBW)

Optional Configuration:Quartz sand for oil testing

Tungsten trioxide
Silica wool
Crucibles
Tool kit

Models Available:

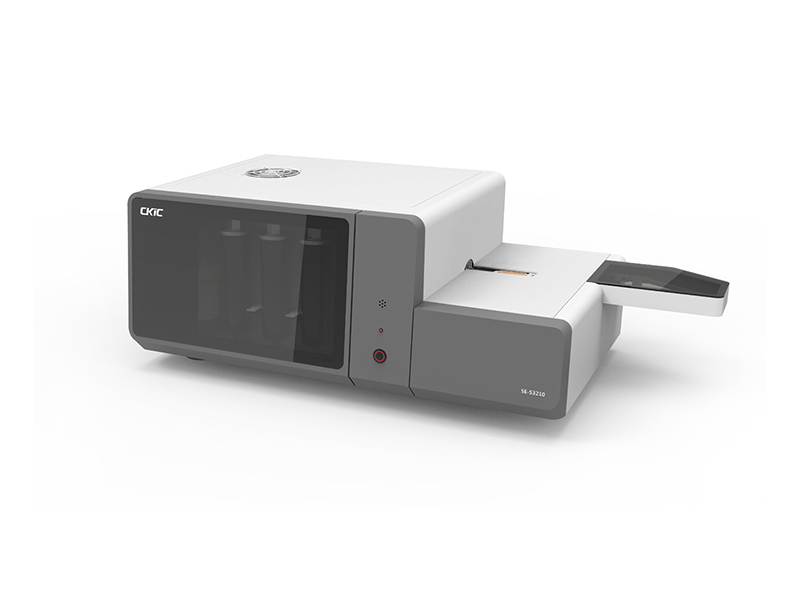

5E-S3210 Manual Sample Loading

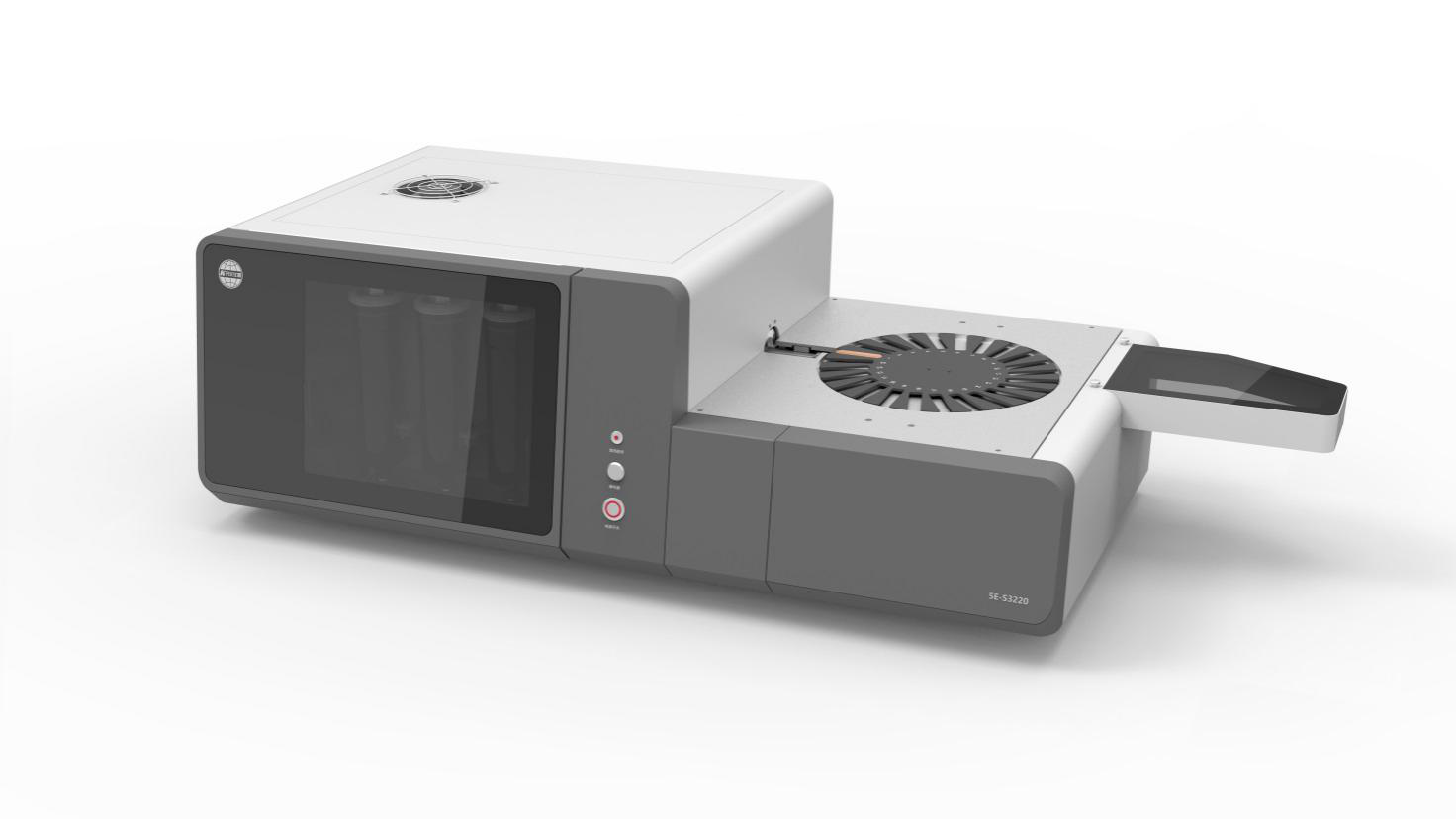

5E-S3220 Automatic Sample Loading

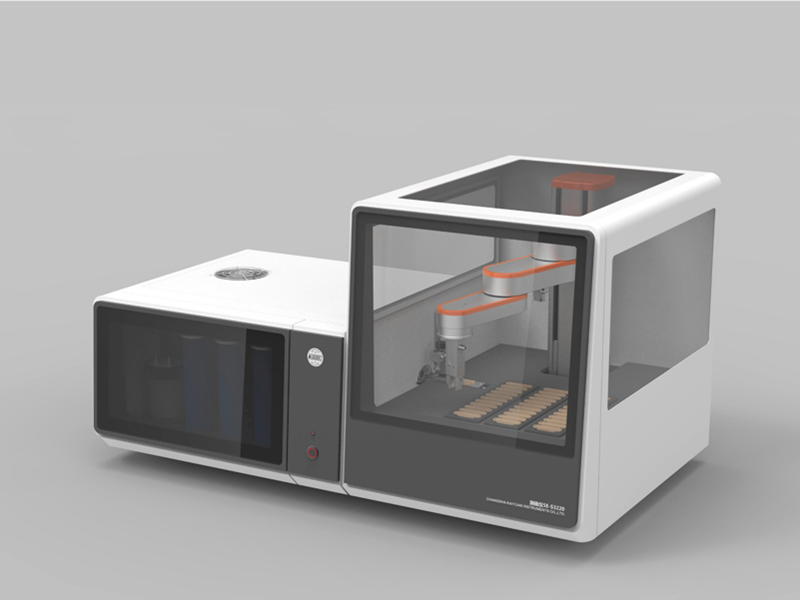

5E-S3230 Automatic Sample Loading with Robotic Arm

Features:
High AutomationThe stirring speed and pumping/blowing flow are controlled automatically and make customizable settings as required. With high quality sensors, it can realize precise control.

Easy Operation 1. Large volume reagent tube to minimize the maintenance of changing the reagent and the desiccant can be used repeatedly.
2. Multiple controls available, that is, one computer can control several sulfur analyzers at the same time.

Additional features for 5E-S3230Loading sample automatically with robotic arm, high precision and high reliability.
40 samples can be placed per batch, and the samples can be added continuously.
Test sequence can be adjusted as required.

Models	5E-S3210	5E-S3230	5E-S3220
Conforms to Method	GB/T 214, ISO20336
Max. Sample Loading	1	40	30
Sulfur Range	0.01-40%
Analysis Resolution	0.001%
Sample Mass	10-110mg		45-55mg (coal), 80-100mg (oil)
Analysis time	3-4mins
Operation Temp.	1150°C (coal, coke), 920°C (oil), 1200°C (cement)		1150°C (coal), 920°C (oil)
Temp. Control Precision	±1℃
Temp. Ramp Rate	1℃/s
Sample Loading Method	Manual	Robotic Arm	Automatic
Gas Leakage Detection	Automatic
Flow Adjustment	Automatic
Stirring Speed Adjustment	Automatic
Replacement Reminding of Electrolyte	Automatic
Replacement Reminding of Silica Gel	Automatic
Power Supply	Single phase, AC220 ±10% , 50/60Hz, 4kW
Net Weight	50kg	80kg	60kg
Dimensions(L×W×H)	900mm×530mm×370mm	1150mm×685mm×630 mm	1080mm×560mm×380 mm
