5E Series Drying Oven

5E series Drying Oven is used for drying, baking and sterilizing of samples in the laboratory, which is widely used in research institutes, inspection company, hospital laboratories and coal mines.

Please leave your E-mail address before download the product PDF. Your cooperation is appreciated.

Warm prompt: Please make sure you entered a correct E-mail address. We will send you relevant information and product quotation regularly.

  • Features
  • Specification
  • Spare parts
  • Case
Standard Configuration:
Shelves for 5E-DHG6310: 4 Layers

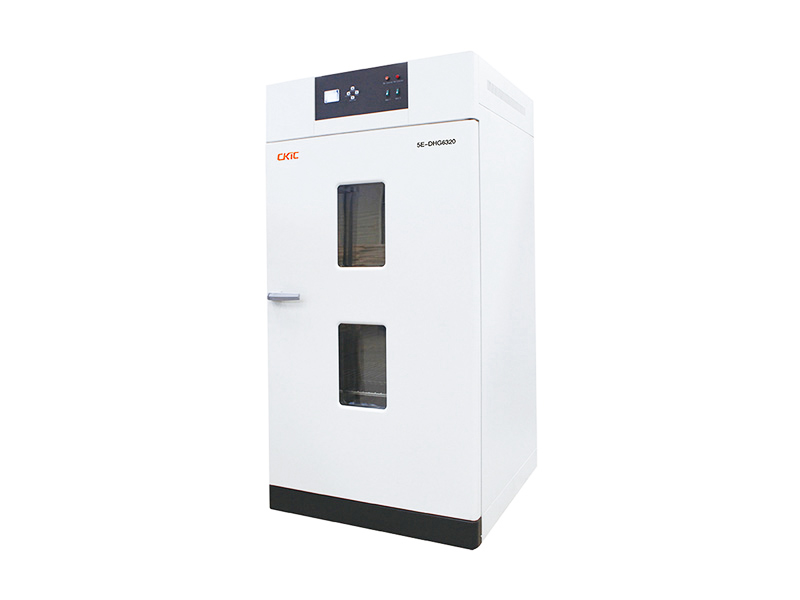

Shelves for 5E-DHG6320: 4 Layers
Shelves for 5E-DHG6340: 5 Layers
Shelves for 5E-MHG6090/5E-MHG6090K: 2 Layers

Optional Configuration:
Shelves for 5E-DHG6310/5E-MHG6090/5E-MHG6090K:Up to 5 layers
Shelves for 5E-DHG6320: Up to 7 layers
Shelves for 5E-DHG6340: Up to 10 layers
Nitrogen Introduction Box for 5E-DHG6310

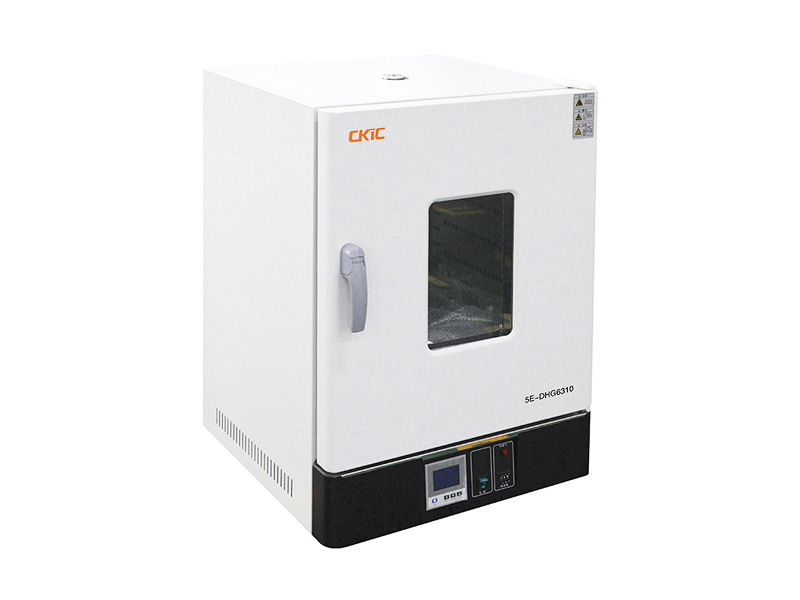

Model Available:5E-DHG6310

1.Vertical type chamber made of stainless steel, is equipped with toughened glass observation window and O-ring between chamber and oven door to ensure airproof and heat insulation.

2. Equipped with low noise motor and electric heater to uniform the heat, keep constant temperature in all zones of chamber.
3. Equipped with a smart temperature controller (PID technology) to achieve rapid response and high precision and less error. The set and actual temperatures for the oven are displayed.

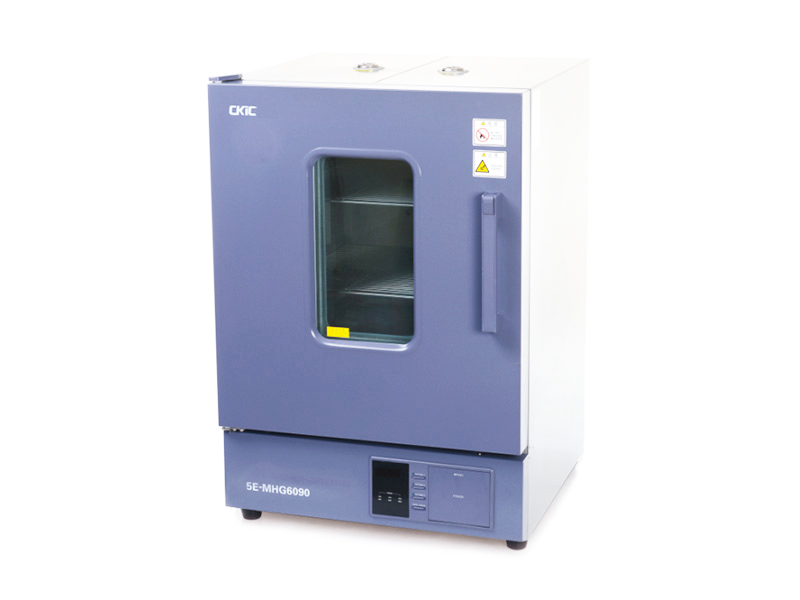

4. Up to three settable modes of heating time and temperature can be saved on the program of 5E-MHG6090/5E-MHG6090K.

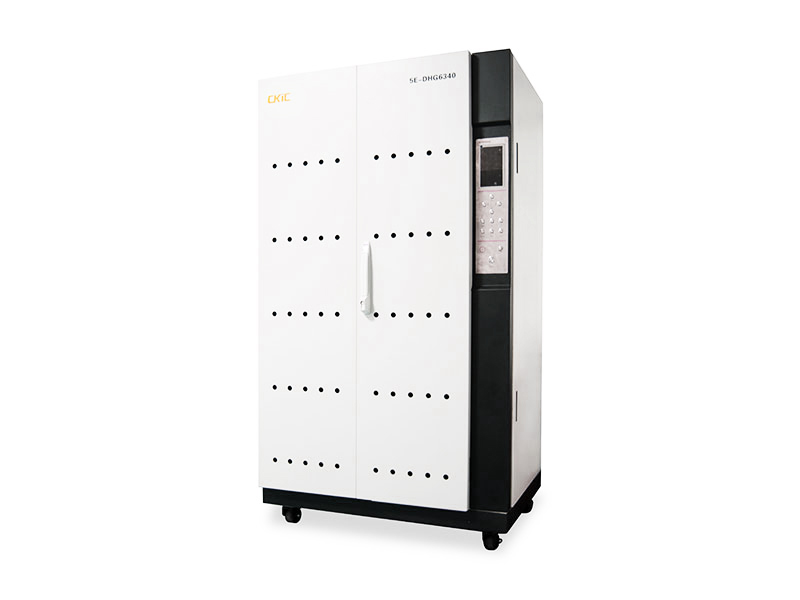

5. 5E-DHG6340 conforms to ASTM D3302/D3302M
6. For 5E-MHG6090K, the oven door will be automatically locked during analysis. The connection to the computer allows the documentation and upload of parameters of tested objects, temperature, time, and oven door status. One computer is capable of controlling multiple drying ovens.

Model 5E-DHG6310 5E-DHG6320 5E-DHG6340 5E-MHG6090/5E-MHG6090K
Internal Capacity 120L 627L 910L 91L
Temp. Control Range (Ambient temp.+20)-250  *Ambient temp.+(10-15)℃,≤40℃ (Ambient temp.+20)-250
Temp. Control Precision ±1
Power Supply Single phase, AC220V±10%, 50/60Hz, 2.2kW 3 phases(5 Terminals), AC380V±10%, 50/60Hz, ≤6kW Single phase, AC2200V±10%, 50/60Hz, ≤6kW Single phase, AC220V±10%, 50/60Hz, 1.5kW
Net Weight 56kg 160kg 280kg 70kg
Chamber Size(L×W×H) 500mm×450mm×550mm 660mm×760mm×1250mm 950mm×620mm×1550mm 450mm×450mm×450mm
Dimensions(L×W×H) 636mm×680mm×915mm 890mm×925mm×1830mm 1100mm×890mm×2010mm 600mm×590mm×875mm

* If 40℃ analysis temperature required for DHG6340,ambient temperature should lower than 25℃. Nitrogen Introduction Device is upgrade option
