  • 5E-C5808 Automatic Calorimeter

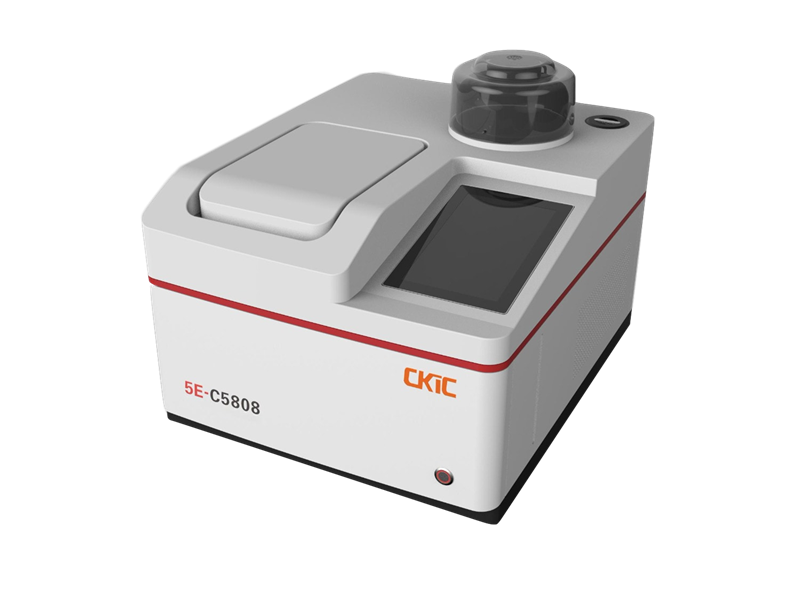

5E-C5808 Automatic Calorimeter NEW!

5E-C5808 is CKIC new generation calorimeter which is used to determine the calorific value of solid and liquid combustibles including oil, coal, coke, foodstuffs and biomass products. The calorific value is a crucial characteristic for each substance, also the key point to calculate the price of coal, so it will directly affect the economic benefits of the customers. This technique is widely applied in power plants, coal mines, metallurgy, chemical industry, commercial inspection, scientific research, etc.

Please leave your E-mail address before download the product PDF. Your cooperation is appreciated.

Warm prompt: Please make sure you entered a correct E-mail address. We will send you relevant information and product quotation regularly.

  • Features
  • Specifications
  • Spare parts
  • Case
Models Available:
5E-C5808 Automatic Calorimeter (Ignition Wire)

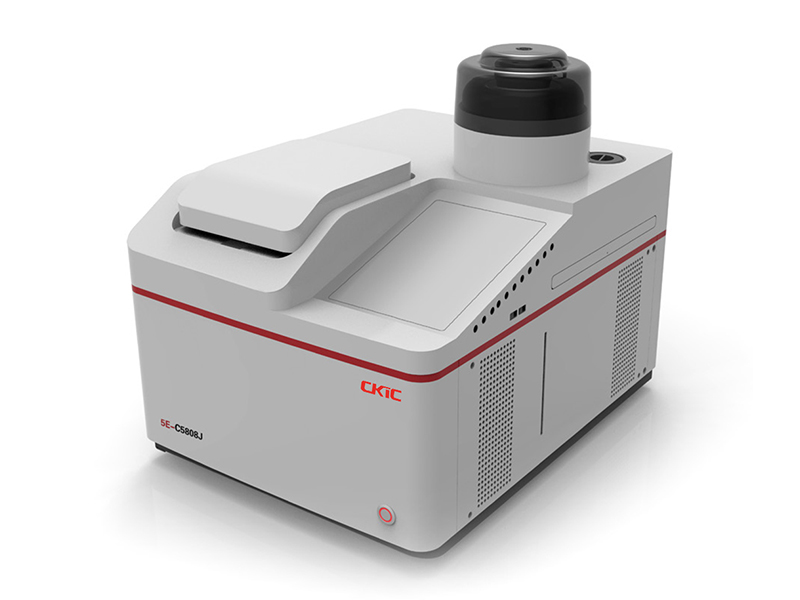

5E-C5808J Automatic Calorimeter (Laser Ignition Technology)
Standard Configuration:
Main analyzer
Standard CV bomb -1 Unit
Crucibles
Ignition Paper/Wire
Benzoic Acid
O-ring kit
Tool kit





Optional Configuration:
Lens paper
Pellet press
Halogen Resistant Oxygen Vessel
Computer

Features 1. Pioneering laser ignition technology allowing easier and faster sample preparation, no ignition wire or cotton thread is needed(Available in 5E-C5808J model only)
2. 8min fast analysis for one sample
3. Automatic oxygen vessel lifting
4. Automatic oxygen charging and venting
5. Intelligent temperature control of the jacket and the water tank, the water constant temperature stability of the jacket reaches to 0.02
6. Available in PC or easy and convenient touch screen operation
7. Small space occupied with compact design
8. Intelligent diagnosis and safety protection function

Model

5E-C5808J 5E-C5808

Conforms to Method

AS 1038.5, ASTM D5865, ASTM D4809, ASTM E711, BIS 1350, BS EN 15400, GB/T 213, GB/T 30727, ISO 1928, ISO 9831, ISO 18125, ASTM D240

Precision (1g Benzoic Acid)

0.05% RSD *

Measuring Range

Up to 50000J

Heat Capacity Stability

≤0.2% within one year

Temp.Resolution

0.0001℃

Control Ability

2 Units/ 1 PC available

Analysis Time per Sample

8mins

Jacket Type

Isoperibol

Ignition Method

Laser Ignition Ignition Wire

Vessel Identification

Yes

Balance Connection

Available

Network Connection

Available

Bucket Filling

Automatic

Oxygen Filling

Automatic

Bomb Vessel Lifting

Automatic

Structure

Benchtop

Power Supply

Single phase, AC220V±10%, 50/60Hz, ≤500w

Net Weight

75kg

Dimensions(L×W×H)

705mm×520mm×595mm

*Test Condition: 1. Ambient temp.20℃±1℃,humidity75%±5%  2. No strong interference source nearby  3. Clean water circuit with distilled water  4. Refer to the precision of ten acceptable calibration test runs
