  • TGM226 Automatic Moisture Analyzer

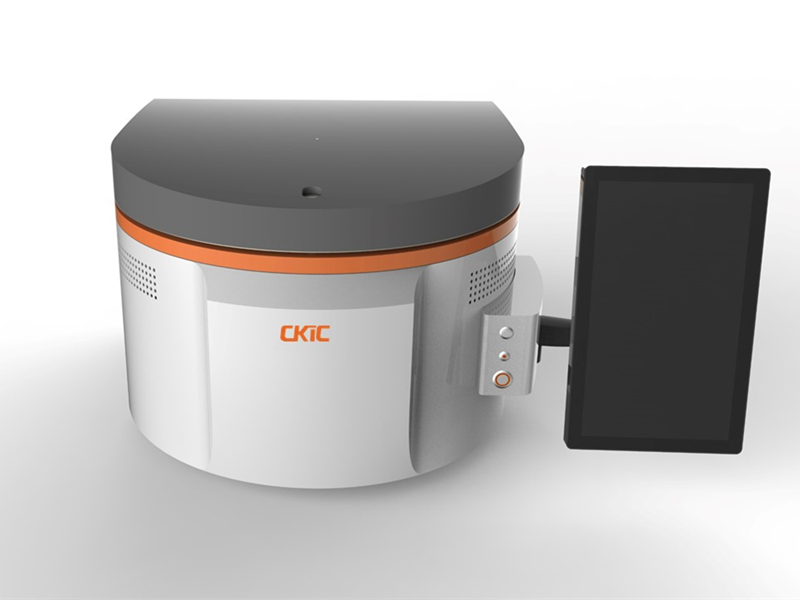

TGM226 Automatic Moisture Analyzer

TGM226 Automatic Moisture Analyzer is used to determine the total moisture and air dry basis moisture in various samples.

Please leave your E-mail address before download the product PDF. Your cooperation is appreciated.

Warm prompt: Please make sure you entered a correct E-mail address. We will send you relevant information and product quotation regularly.

  • Features
  • Specification
  • Spare parts
  • Case

Working Principle:
TGM226 Automatic Moisture Analyzer adopts the controllable direct drying method, and measures sample mass change under this environment by setting the temperature and atmosphere, and obtains the test result of the sample moisture. It is mainly composed of temperature control system, gas circuit module and weighing module. The test sample is placed in the furnace with accurate temperature control and atmosphere provided by temperature control system and gas circuit module. The weighing module provides the real-time mass data during drying process and automatically determine constant weight conditions and calculate the results.

Features:
Big capacity for batch testing
Available to test 26 samples per batch, big capacity crucible(35ml) can be applied to test a variety of samples.

Easy operation
The sample loader of a proper height and large touch screen make operation easier and more convenient.

High Automation and efficiency
After loading, the procedure will carry on as required to control temperature change, weigh sample, and calculate constant weight and test result. Operator can walk away and control more than one equipment simultaneously.

Smart in technology
1.Built-in balance can weigh samples continuously in real time without cooling down. External balance is available for option as well.
2.Flexible setting function, capable to set temperature, atmosphere and report content as required.
3.Thermal weight curve (temperature -mass changes curve) can be drawn and display in real time.

Accurate and precise
Avoid human mistakes of traditional method in weighing, transmission and calculation through self-inspection, the analyzer guarantees a more accurate and precise test result.

Model TGM226 Automatic Moisture Analyzer
Conforms to Method GB 5009.3,GB/T 6435,GB/T 211,HJ 613,CJ/T 221
Max. Sample Loading 26
Sample Mass 0-10g
Balance Resolution 0.0001g
Temp. Range 0-180℃
Temp. Control Precision ±2℃
Temp. Rise Speed 0-30℃/min
Temp. Control Stage 20
Gas Supplied Air/Nitrogen
Gas Flow 0-20L/min
Overheating Protection Yes
Power Supply Single phase, AC220V, 50, ≤1kW
Net weight 50kg
Dimensions(L×W×H) 700mm×650mm×450mm
