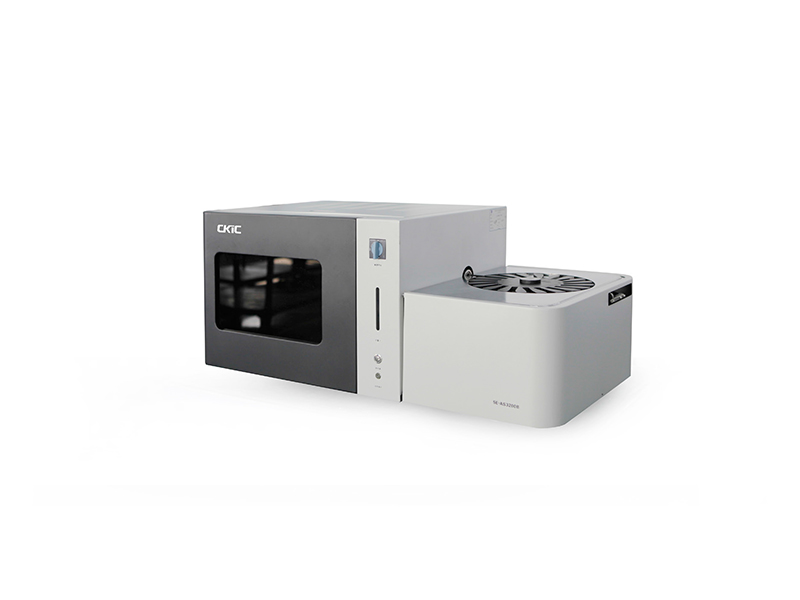

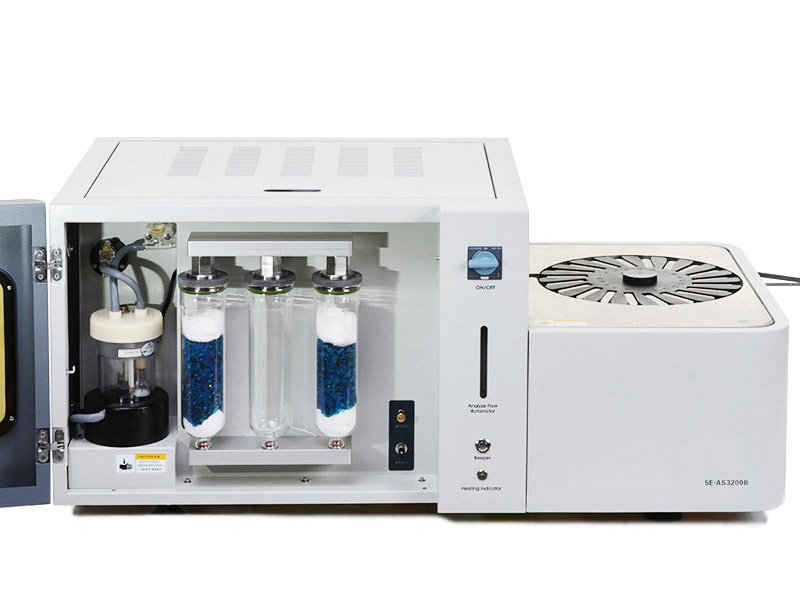

5E-AS3200B Automatic Coulomb Sulfur Analyzer

5E-AS3200B Automatic Coulomb Sulfur Analyzer is used to determine the total sulfur content in coal and liquid fuel. A sample is combusted in a dry air atmosphere; the gases evolved go to a electrolytic cell containing platinum indicating electrodes and platinum electrolysis electrodes. A small current is produced as the sulfur reacts with electrodes; the current is balanced and equivalent to the amount of sulfur present in coal.

Please leave your E-mail address before download the product PDF. Your cooperation is appreciated.

Warm prompt: Please make sure you entered a correct E-mail address. We will send you relevant information and product quotation regularly.

  • Features
  • Specification
  • Spare parts
  • Case
Standard Configuration:
Computer
Main analyzer
Electrolytic cell
Standard Reference Material(GBW)

Optional Configuration:Quartz sand for oil testing


Tungsten trioxide
Silica wool
Crucibles
Tool kit




Features:Easy Operation 1. Auto self-diagnosis.
2. Protect heating components by over temperature alarms and auto heating off function

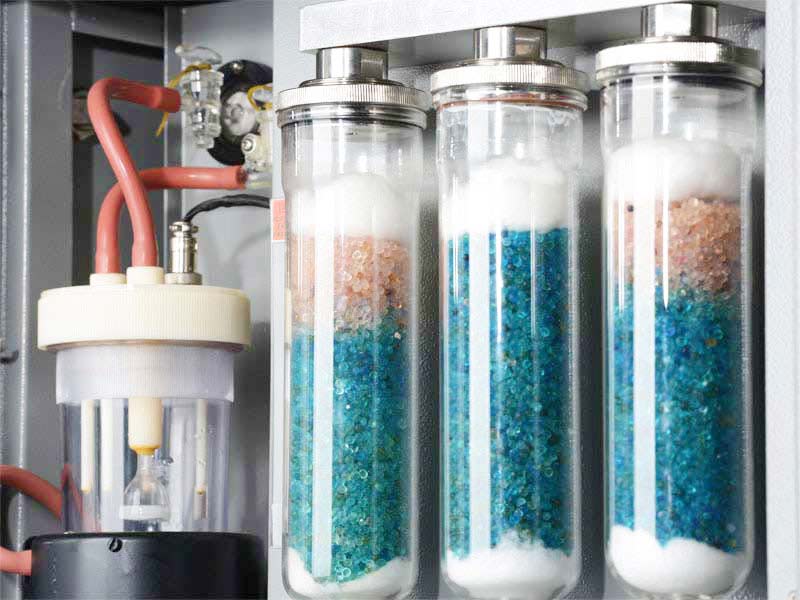

3. Large volume reagent tube to minimize the maintenance of changing the reagent

Cost Saving The test can be performed without oxygen, and the desiccant can be used repeatedly.

Additional Features for 5E-AS3200B

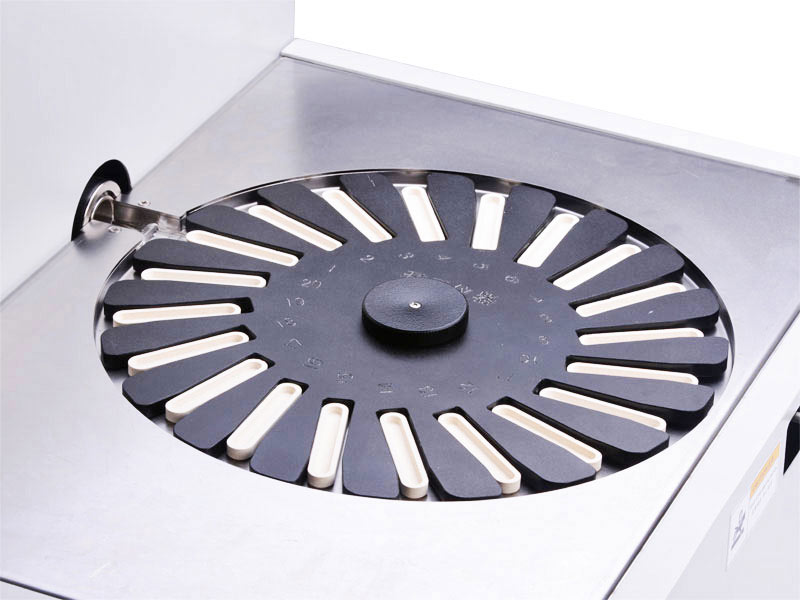

Unattended Operation The operator is limited to just loading the sample onto the auto-loader.
Model 5E-AS3200 Automatic Sulfur Analyzer
Conforms to Method GB/T 214, ISO20336
Analysis Resolution 0.01%
Max. Sample Loading 20 sample per batch automatically
Sulfur Range 0.01%-30% customized range available
Min. Analysis Time 3min
Operation Temp 0-1200°c selectable (for coal 1150 is recommended, for oil 920 is recommended.)
Temp.Control Precision ±3
Sample Mass 45-55mg for coal, 80-100mg for oil
Power Supply Single phase, AC220V±10%, 50/60Hz, 3kW
Net Weight 57kg
Dimensions(L×W×H) 996mm×530mm×412mm
